HVG MARINE MOORING EQUIPMENT 0164

HVG MARINE MOORING EQUIPMENT 0164: Single Roller Chock

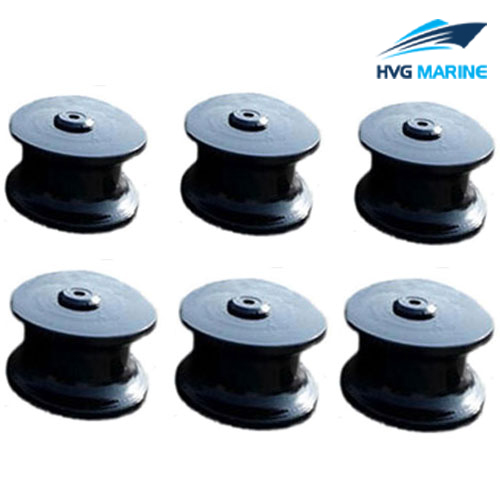

Marine chocks have multiple forms such as closed chock, open chock, no-roller chock, roller chock. It is mainly divided into two categories: no-roller chock and roller chock.Generally, marine chock is made by casting with intergral and modular forms. Marine cast chocks are normally mounted on the gunwale of the bow and poop. Roller chock can reduce the friction to mooring rope.

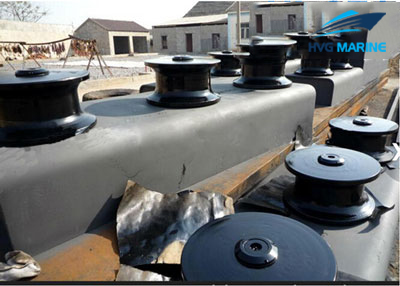

HVG MARINE MOORING EQUIPMENT 0164 Single Roller Chock is marine cast iron roller chock. .If you’re interested in our chocks, please feel free to contact us.

Specification :

Material: Cast Iron
Technology: Casting
Certificate: CCS,DNV,ABS,BV,LR,KR

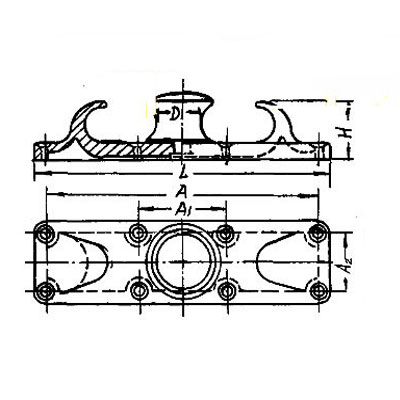

Drawing:

Technical specification:

Technical specification

Steel Rope Diameter	Hemp Rope Circumference	Roller Diameter D	L	B	H	h	A	A1	A2	d	Bolts Quantity(piece)	Weight(kg)
15.5	125	75	600	175	135	40	550	250	125	17	8	35
19.5	175	100	750	210	155	45	680	250	140	21	8	63
22.5	200	125	900	245	175	50	830	280	175	25	8	104
26.0	225	150	1060	280	205	55	970	320	190	30	8	152
30.5	250	170	1150	310	218	58	1060	340	220	33	8	187
33.5	275	185	1250	340	235	60	1160	350	250	33	8	230
37.5	300	200	1300	360	260	65	1210	330	270	33	12	277
43.5	325	230	1420	400	270	65	1320	340	300	33	12	370
48.5	350	250	1550	420	285	70	1430	380	300	39	12	459
