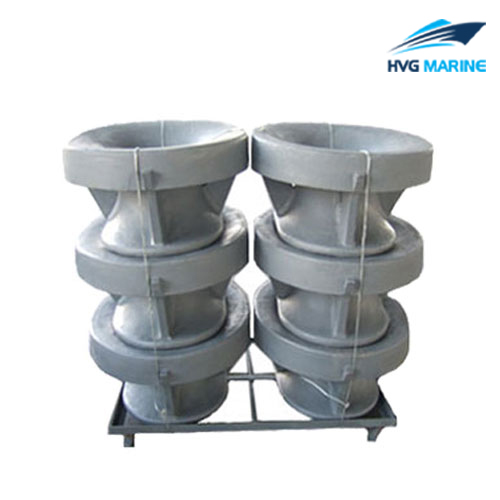

HVG MARINE MOORING EQUIPMENT 0169: Single Point Mooring Pipe

Marine chocks, mounted on deck or bulwark, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes. Single Point Mooring Pipes has two types.. Different types have different specifications. If you’re interested in our chocks, please feel free to contact us.

Specification :

Nominal Size: 400mm~800mm
Weight: 190kg~830kg
Material: Cast Steel
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

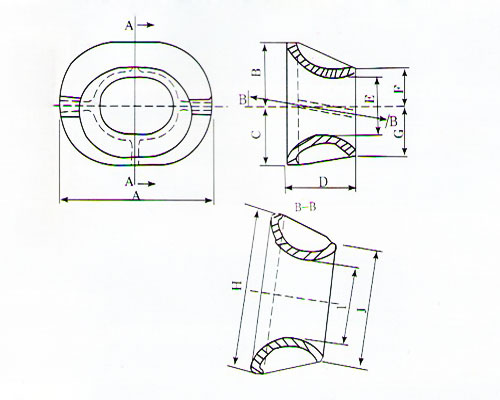

Drawing:

Technical specification:

Technical specification

Nominal Size(mm)	A	B	C	D	E	H	I	Weight(kg)
400	800	320	300	350	300	800	400	190
500	960	370	350	400	400	960	500	310
600	1120	420	400	450	450	1120	600	460
700	1280	470	450	500	500	1280	700	660
800	1440	520	500	550	600	1440	800	830
