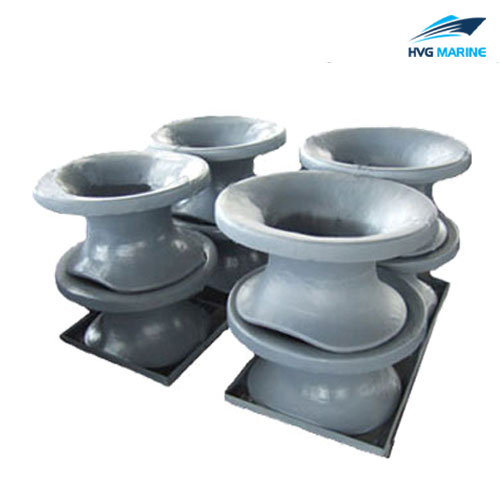

    HVG MARINE MOORING EQUIPMENT 0165:  Mooring Chock

    Marine chocks, also called “bulwark mounted chock”, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes.

    HVG MARINE MOORING EQUIPMENT 0165 Mooring Chock is made of cast steel. Its surface is smooth with no burs or sharp edges, which helps reduce the friction of the mooring rope. HVG MARINE MOORING EQUIPMENT 0165 marine chock is mounted on bulwark. It has two optional nominal dimensions. If you’re interested in our chocks, please feel free to contact us.

    Specification :

    • Material: Cast Steel
    • Technology: Casting
    • Nominal Dimension(mm): 300*250,400*250
    • Certificate: CCS,DNV,ABS,BV,LR,MILL

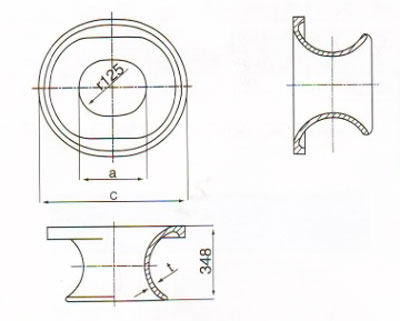

    Drawing:

    Technical specification:

    • Technical specification

    Unit:mm

    Type

    a

    c

    t

    Weight(kg)

    300×250

    300

    660

    20

    114

    400×250

    400

    760

    25

    153
