HVG MARINE MOORING EQUIPMENT 0173

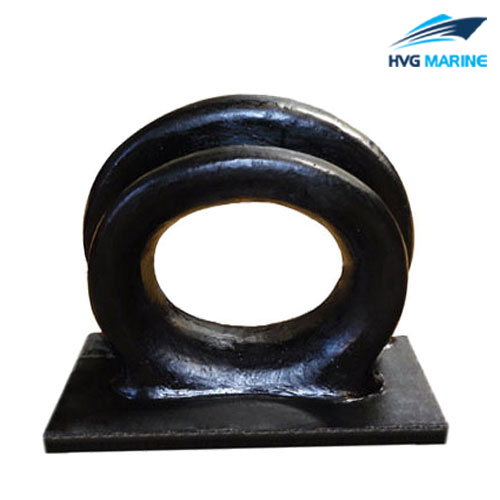

HVG MARINE MOORING EQUIPMENT 0173: Mooring Chock

Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. HVG MARINE MOORING EQUIPMENT 0173 marine mooring chocks have four types: type A, type B, type C, type D. If you’re interested in our mooring chocks, please feel free to contact us.

Specification :

Material: Cast Steel
Weight: 37.5kg~296kg
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

Drawing Type C:

Technical specification:

Technical specification

Unit:mm

Steel Rope Dia	Hemp Rope C	Nylon Rope Dia	L	L1	B	B1	B2	B3	H	H1	R	R1	b1	b2	b3	r	r1	r2	r3	t1	t2	Weight(kg) ≈
15.0	125	30	150	400	110	170	118	60	250	115	48	102	32	40	26	50	27	20	10	25	5	37.5
18.5	160	35	200	500	150	190	139	71	317	146	65	133	40	50	32	70	30	30	10	30	5	63.0
22.5	200	45	250	600	190	220	161	82	382	177	85	165	45	55	30	75	37	30	15	35	10	97.0
28	230	55	300	650	220	250	172	88	436	198	95	203	50	60	42	90	37	40	15	40	10	127.0
38	270	70	400	750	290	280	185	95	513	240	125	273	55	65	47	95	39	40	20	45	10	210.0
43.5	325	90	500	880	350	300	199	102	589	277	147	350	60	70	51	110	42	50	20	50	10	296.0
