HVG MARINE MOORING EQUIPMENT 0174

HVG MARINE MOORING EQUIPMENT 0174: Mooring Chock

Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. HVG MARINE MOORING EQUIPMENT 0174 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D. If you’re interested in our mooring chocks, please feel free to contact us.

Specification :

Material: Cast Steel
Weight: 16.4kg~171kg
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

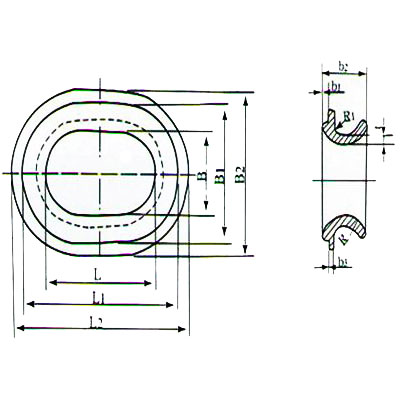

Drawing Type A:

Technical specification:

Mooring Chock Type A

Unit:mm

Max. Steel Rope Dia	Hemp Rope C	Nylon Rope Dia	L	L1	L2	B	B1	B2	t	b1	b2	b3	R	R1	Bulwarks Opening Size L3×B3	Weight(kg) ≈
18.5	160	35	200	300	340	130	230	270	18	18	110	9	58	20	310×240	16.4
22.5	200	45	260	400	450	170	310	360	22	25	160	10	84	30	415×325	40.4
28.0	230	55	320	465	515	200	345	395	25	28	175	12	95	30	480×360	57.0
33.5	270	70	400	572	632	260	430	490	30	32	200	15	108	35	592×450	95.6
43.5	325	90	480	685	755	310	525	595	35	35	240	18	126	45	705×545	171.0
