HVG MARINE MOORING EQUIPMENT 0148: Warping Roller

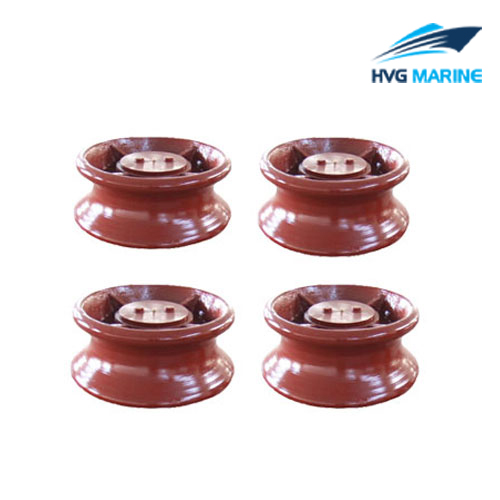

HVG MARINE MOORING EQUIPMENT 0148 warping roller is one kind of important marine deck fitting device. It is installed on the deck and guide the wire towards a certain position. HVG MARINE MOORING EQUIPMENT 0148 warping roller has 8 types. All our rollers and fairleads have excellent quality. If you’re interested in our products, please feel free to contact us.

Specification:

Material: Cast Steel
Max. Towing Load(KN): 10,20,32,50,80,125,200,320
Weight: 12kg~625kg
Certificate: CCS,ABS,BV,LR,NK,RINA etc.

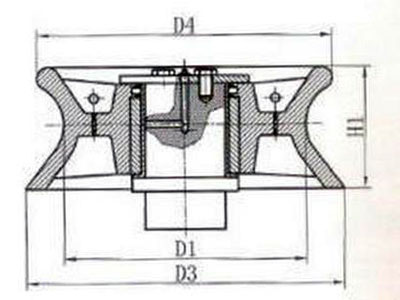

Drawing :

Technical specification:

Technical specification

Unit:mm

Type	Rated Towing Pull(kn)	Breaking Strain of Rope(kn)	Weight(kg)	D1	D3	D4	H1
1	10	90	14	160	210	195	80
2	20	150	20	200	265	245	102
3	30	220	33	250	330	300	126
5	50	350	72	320	420	390	160
8	80	500	140	400	530	490	208
12	120	800	240	450	610	560	256
20	200	1150	320	500	640	620	278
32	320	1750	580	560	780	740	348
