HVG MARINE MOORING EQUIPMENT 0147

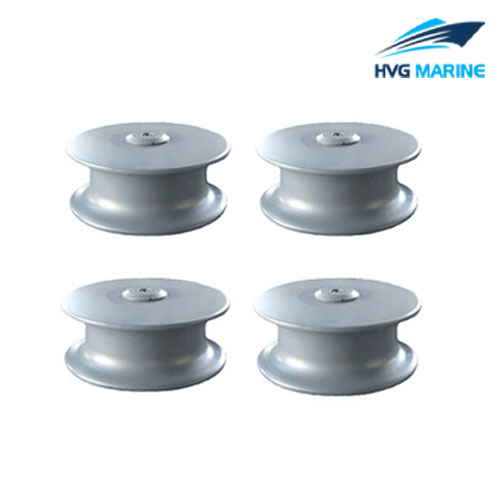

HVG MARINE MOORING EQUIPMENT 0147: Fairlead Roller

HVG MARINE MOORING EQUIPMENT 0147 fairlead roller is one kind marine roller for fairlead. It is used to lead the direction of mooring ropes for marine ships. HVG MARINE MOORING EQUIPMENT 0147 fairlead roller has high breaking load of tightwire. Compact structure, smooth surface, standard production and stable performance is the features of marine fairlead roller. We can provide both standard fairlead roller and the customized one for customer’s special requirement. If you’re interested in our marine roller, please feel free to contact us.

Specification:

Material: Cast Iron
Standard: NS2585
Roller Diameter:150mm~450mm
Applicable Rope Diameter:32mm~85mm
Certificate:CCS,ABS,BV,LR,NK,RINA

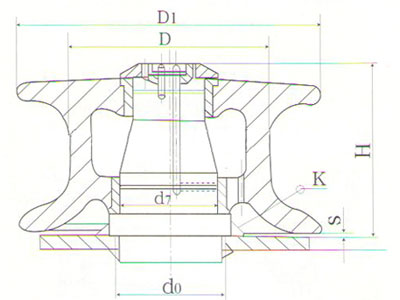

Drawing:

Technical specification:

Technical specification

Unit:mm

Diameter of Roller(D)	Max. Diameter of Applicable Rope				Size							Weight(kg)
	Synthetic Fiber Rope	Hemp Rope	Steel(GB1102) Rope Stress Length 1550N/mm²		D1	d0	d7	H	s	t	k
	Synthetic Fiber Rope	Hemp Rope	6×24	6×37	D1	d0	d7	H	s	t	k
150	32	45	17.0	15.0	240	90	79	154	5	12	9	24.8
200	40	55	22.5	19.5	310	115	99	186	5	14	10	49.3
250	45	65	24.0	24.0	380	135	119	230	6	14	10	92.0
300	50	70	30.0	28.0	440	155	129	255	7	16	12	127.0
350	55	75	37.5	34.5	500	175	149	271	7	18	13	168.0
400	65	85	41.0	39.0	560	185	159	307	7	20	14	252.5
450	80	–	44.5	43	630	210	178	316	7	20	14	310.0
