HVG MARINE MOORING EQUIPMENT 0144

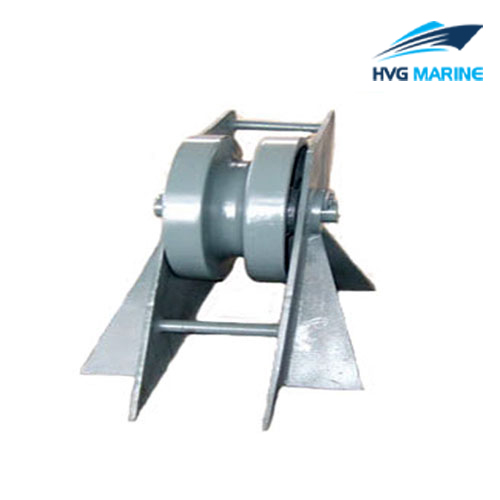

HVG MARINE MOORING EQUIPMENT 0144: Hawse Pipe Chain Wheel

Marine chain wheel, installed between hawse pipe and chain stopper, is a kind of marine chain roller which is used to avoid the friction between anchor chain and hawse pipe. CB290-84 chain wheel for hawse pipe is mainly made of casting steel and carbon fiber steel. Its surface is clean and smooth. There is no any defects such as airhole, crack which may affect chain wheel’s strength. The roller is flexible to turn. It is anti-rust as well. Our marine chain wheels are approved by quality inspection center. If you’re interested in our products, please feel free to contact us.

Specification:

Model Type: HVG MARINE MOORING EQUIPMENT 0144 Hawse Chain Wheel
Material: Cast Steel
Standard:GB290-84
Nominal Diameter:14mm~68mm
Weight:8.6kg~663.7kg
Certificate: CCS,ABS,BV,NK,LR,RINA

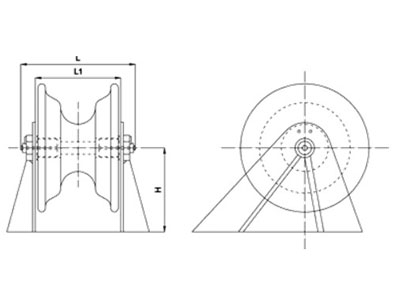

Drawing:

Technical specification:

Technical specification

Weight(kg)	Nominal Dia. Of Anchor Chain	Size(mm)
Weight(kg)	Nominal Dia. Of Anchor Chain	H	L	L1
8.6	12.5~14	112	176	102
18.0	16~17.5	138	214	130
26.7	19~20.5	154	234	146
39.4	22~24	176	254	168
58.0	26~28	198	286	192
85.0	30~32	226	320	214
113.5	34~36	248	350	240
157.6	38~40	274	388	266
204.0	42~44	296	424	294
257.7	46~48	324	454	316
310.0	50~52	346	480	338
393.0	54~56	372	514	362
457.9	58~60	394	542	378
581.6	62~64	422	574	402
663.7	66~68	444	604	424
