HVG MARINE MOORING EQUIPMENT 0139

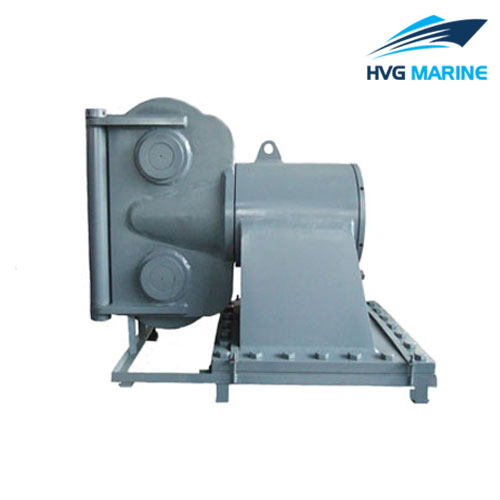

HVG MARINE MOORING EQUIPMENT 0139: Swivel Fairlead

Swivel fairlead, installed on the deck of ships, is one kind of fairlead device which is used for ship mooring. In the central body of the fairlead there is opening for mooring ropes or anchor chains. At the beginning and end of the fairlead,there are same size front panel and back panel. The shape of opening is approximately elliptical. The surface of opening is smooth to avoid the abrasion of mooring ropes or anchor chains. In order to increase the stiffness and strength, fairlead set respectively horizontal, vertical, diagonal ribs. With the compact structure and reasonal opening, swivel fairlead is applicable to not only ordinary ship towing or mooring, but also to ships sailing in the canal waterway.

Specification:

Max. Rope Diameter: 20mm~76mm
Breaking Strength:32~200MT
Rotation Angle: Sheave90°warp, Swivel Head±90°
Material: Cast Steel
Certificate:CCS,ABS,BV,LR,NK,RINA

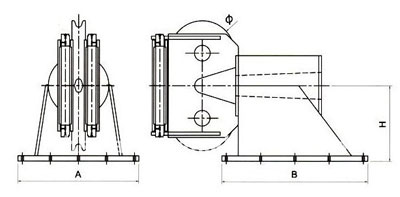

Drawing:

Technical specification:

Technical specification

Unit:mm

Type	Max Wire Dia	A	B	H	Φ
SLPM20	20	400	425	350	250
SLPM25	25	400	425	360	250
SLPM32	32	600	600	376	320
SLPM38	38	760	760	489	400
SLPM44	44	880	880	580	500
SLPM52	52	1120	1250	700	600
SLPM60	60	1120	1350	720	620
SLPM68	68	1210	1450	780	680
SLPM76	76	1250	1500	870	780
