HVG MARINE MOORING EQUIPMENT 0136

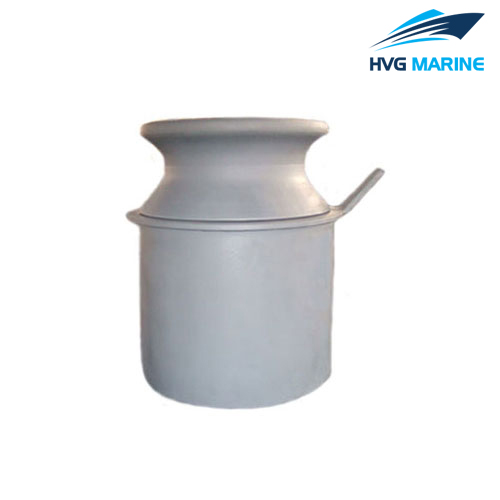

HVG MARINE MOORING EQUIPMENT 0136: Pedestal Fairlead

HVG MARINE MOORING EQUIPMENT 0136 pedestal fairlead is installed on the deck of vessels which used to guide the mooring ropes. HVG MARINE MOORING EQUIPMENT 0136 fairlead is produced following the German standard. The roller is flexible to guide the ropes. The surface of both the roller and pedestal is smooth without any defects. All the fairleads get the certificate of quality. If you’re interested in our fairleads, please feel free to contact us.

Specification:

Model Type: HVG MARINE MOORING EQUIPMENT 0136
Material: Cast Iron/ Cast Steel
Roller No.: Single Roller
Certificate: CCS, ABS, BV, LR, NK, RINA

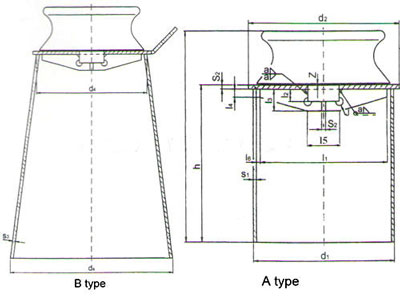

Drawing:

Technical specification:

Technical specification

Unit:mm

Type	d1×S1	d2	b	d4
1	219×12.5	255	60	—
2	273×12.5	310	60	—
3	355×12.5	395	60	—
5	457×12.5	495	60	—
8	559×12.5	595	80	560
12	660×14.2	705	80	660
20	660×17.5	705	100	660
32	813×16	865	100	810
