HVG MARINE MOORING EQUIPMENT 0131: Fairlead with Horizontal Rollers

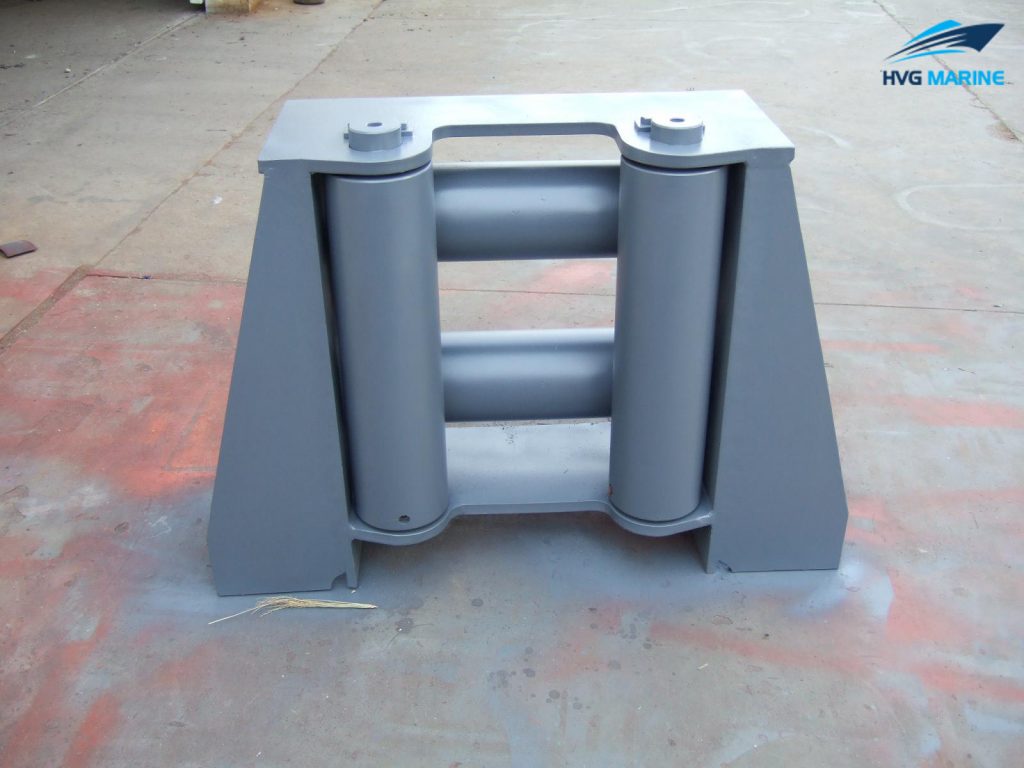

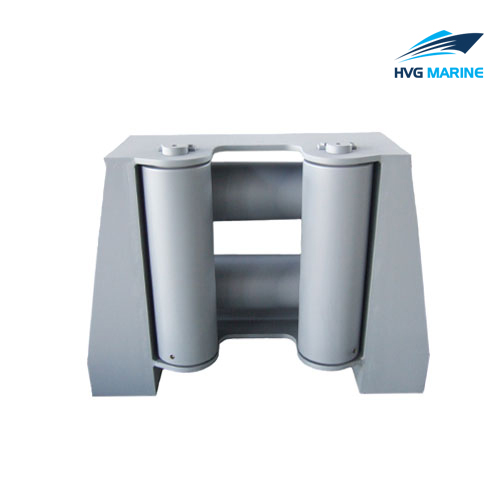

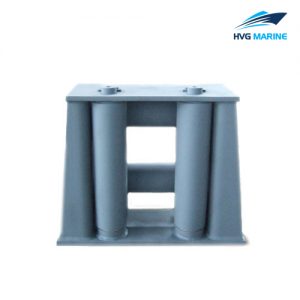

Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.

Specification :

Material: Cast Steel
Standard: CB*3062-2011
Roller No.: 4 Rollers
Steel Cable Diameters: 14mm~44mm
Nylon Rope Diameters: 36mm~100mm
Weight: 112kg~2411kg
Certificate: CCS, ABS, BV, LR, NK, RINA

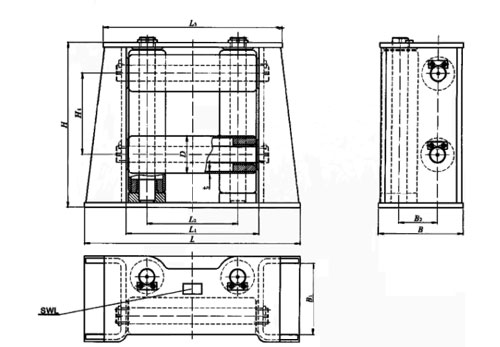

Drawing:

Technical specification:

Technical specification

Unit:mm

Nominal Diameter	Steel Wire Diameter	Nylon Rope Diameter	SWL KN	B	B1	B2	D	H	H1	L	L1	L2	L3	t	Weight kg
100	14	36	54	238	194	108	102	508	330	644	416	300	544	10	112
120	16	40	70	280	232	128	121	552	360	728	456	320	608	12	169
140	18	45	89	304	250	138	140	606	405	776	480	330	646	14	227
150	20	70	110	346	288	158	152	670	435	880	540	370	730	16	328
160	22	80	133	370	308	168	168	710	470	940	580	400	780	18	388
180	26	85	186	417	345	190	194	770	380	1030	620	420	850	20	620
200	28	95	216	459	385	210	219	820	410	1136	686	460	936	22	789
230	32	100	282	521	445	240	245	910	450	1256	746	490	1026	25	1067
260	36	100	357	590	500	270	273	1000	500	1430	850	560	1170	28	1585
320	44	100	533	714	620	330	325	1130	570	1690	990	640	1370	30	2441
