HVG MARINE MOORING EQUIPMENT 0138: Cleat Fairlead with Single Roller

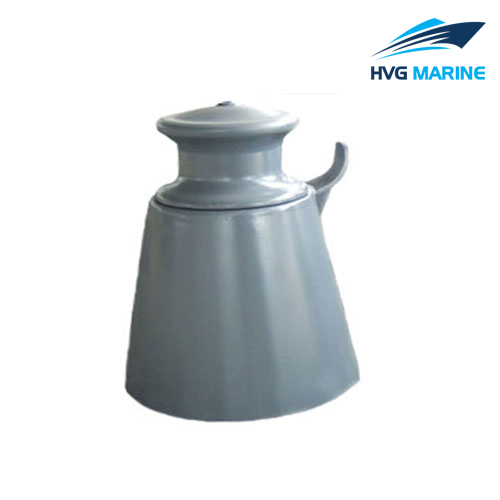

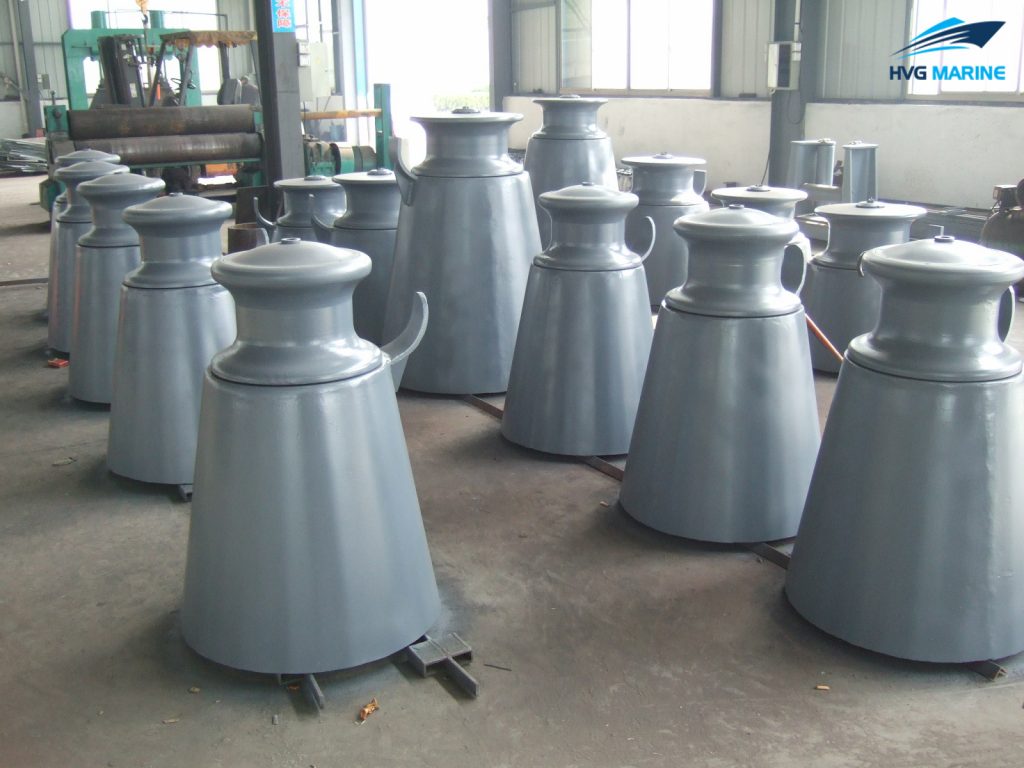

HVG MARINE MOORING EQUIPMENT 0138 fairlead is strictly produced in line with the quality standard. Its weld and surface is smooth and uniform. The fairlead roller is flexible to turn. The surface of roller is painted asphalt. All our fairleads get the certificate of quality. If you’re interested in our fairlead, please feel free to contact us.

Specification:

Material: Cast Iron/ Cast Steel
Roller No.: Single Rolle
Roller Diameters: 100mm~450mm
Roller Weight:9.9kg~452kg
Base Weight: 63.9kg~454.4kg
Certificate: CCS, ABS, BV, LR, NK, RINA

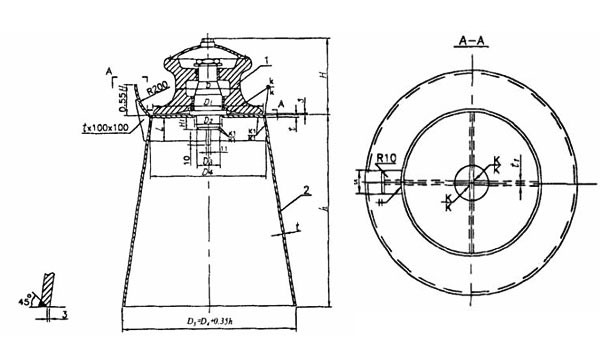

Drawing:

Technical specification:

Technical specification

Unit:mm

Roller Dia. D	Max. Dia. Of Applicable Wires(For Reference)				Dimensions(mm)											Weight kg
	Synthetic Fiber Rope	Hemp Rope	Steel Wire(GB/T 8918) Tensile Strength 1570MPa		a	D1	D2	D3	D4	H	H1	L	S	t	t1	Fairlead Roller	Pedestal
	Synthetic Fiber Rope	Hemp Rope	6×24	6×37	a	D1	D2	D3	D4	H	H1	L	S	t	t1	Fairlead Roller	Pedestal
100	28	40	11	11	60	160	48	40	176	128	35	60	3	8	6	9.9	63.9
150	32	45	16~18	14~16	60	240	71	60	264	211	40	75	3	12	8	33.8	129
200	40	55	22	20	60	310	95	80	338	251	50	85	3	14	10	68	178
250	45	65	24	24	80	380	107	90	408	298	60	100	4	14	10	114	207
300	50	70	30	28	80	440	127	110	474	321	60	100	4	16	14	168	265.4
350	55	75	38	34	80	500	144	125	536	346	65	100	4	18	14	248	332
400	65	85	40~42	38~40	100	560	161	140	600	371	70	120	5	20	16	355	401.3
450	80	–	44	42~44	100	620	180	155	660	394	90	120	5	20	16	452	445.4
Note: the pedestal weight means the weight when the base height is h=1000mm.
