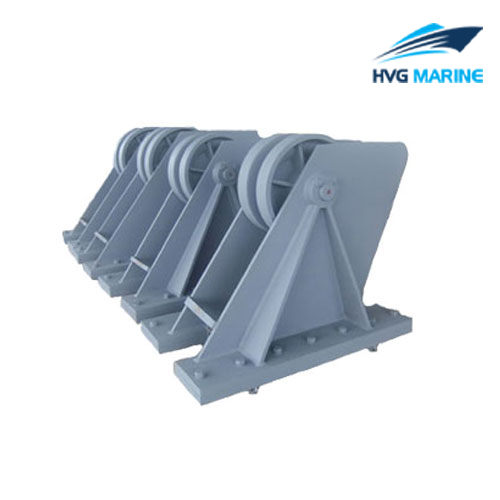

HVG MARINE MOORING EQUIPMENT 0143: Marine Chain Wheel

Marine chain wheel, installed between hawse pipe and chain stopper, is a kind of marine chain roller which is used to avoid the friction between anchor chain and hawse pipe. CB/T 290-95 chain wheel for hawse pipe is mainly made of casting steel and carbon fiber steel. Its surface is clean and smooth. There is no any defects such as airhole, crack which may affect chain wheel’s strength. The roller is flexible to turn. It is anti-rust as well. Our marine chain wheels are approved by quality inspection center. If you’re interested in our products, please feel free to contact us.

Specification:

Model Type: HVG MARINE MOORING EQUIPMENT 0142 Marine Chain Wheel
Usage: applicable to medium and small size ships
Material: Cast Steel
Standard:GB/T 290-1995
Nominal Diameter:14mm~68mm
Weight:12.7kg~832.3kg
Certificate: CCS,ABS,BV,NK,LR,RINA

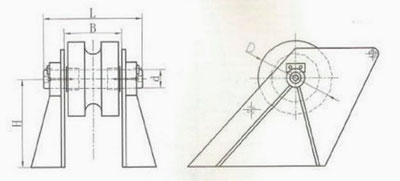

Drawing:

Technical specification:

Technical specification

Unit:mm

Type	Dia. Of Anchor Chain	D	d	L	B	H	Weight(kg)
14	12.5~14	154	26	164	94	150	12.7
17.5	16~17.5	192	32	186	108	170	21.0
20.5	19~20.5	226	38	208	122	210	32.6
24	22~24	264	42	236	142	240	50.0
28	26~28	308	48	262	160	280	74.0
32	30~32	352	54	292	178	310	104.9
36	34~38	396	58	319	201	360	144.4
40	38~40	440	64	349	219	390	189.8
44	42~44	484	70	377	239	430	239.9
48	46~48	528	74	405	259	470	305.5
52	50~52	572	78	430	280	510	370.3
56	54~56	616	82	466	302	540	453.6
60	58~60	660	88	492	320	580	572.3
64	62~64	704	94	526	342	620	687.5
68	66~68	748	98	552	360	660	832.3
