HVG MARINE MOORING EQUIPMENT 0145

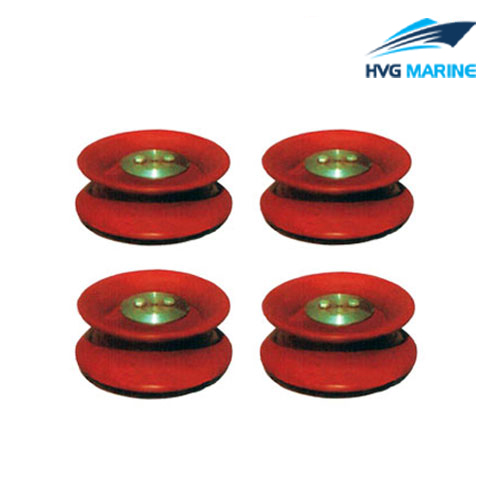

HVG MARINE MOORING EQUIPMENT 0145: Fairlead Roller

Fairlead roller is applicable to ship mooring, helping change the direction of mooring ropes. Marine rollers can work separately or together. Different types have different function and specification. We can provide the standard marine rollers and the customized one for your special requirements. If you’re interested in our fairlead roller, please feel free to contact us.

Specification:

Model Type: HVG MARINE MOORING EQUIPMENT 0145: Fairlead Roller
Material: Cast Steel/Iron
Nominal Diameter:150mm~500mm
Certificate: CCS,ABS,BV,LR,NK.RINA

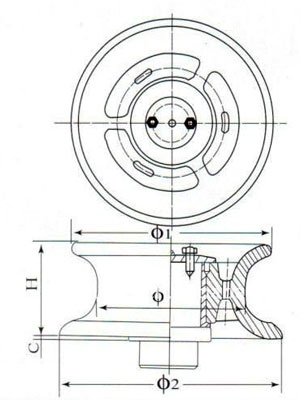

Drawing :

Technical specification:

Technical specification

Unit:mm

Nominal Size	Φ	Φ1	Φ2	H	c
150	150	216	240	137	5
200	200	280	310	157	5
250	250	350	380	177	6
300	300	400	440	197	7
350	350	460	500	217	7
400	400	520	560	237	7
450	450	590	630	257	7
500	500	660	700	277	7
