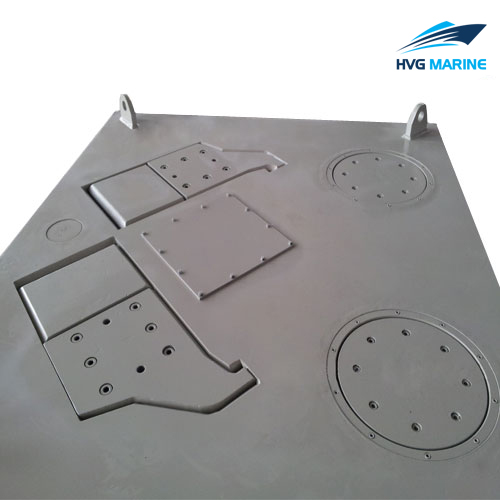

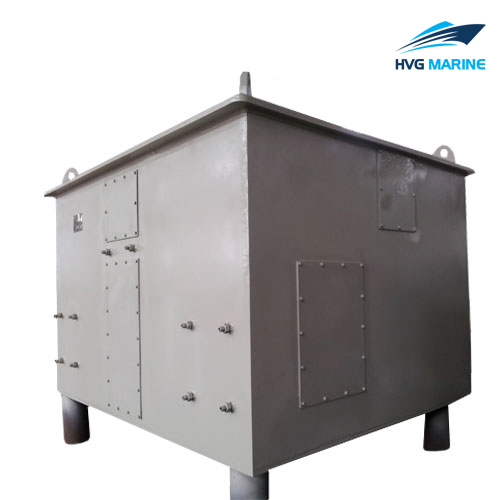

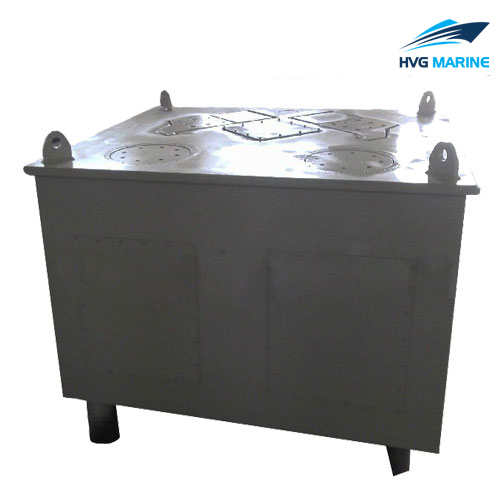

HVG MARINE MOORING EQUIPMENT 0014: Hydraulic Towing Pin with Shark Jaw

Hydraulic towing pin and shark jaws are parts of shark jaw device that are installed on the deck for the safe, quick and effective anchor handling operations. Their main function is to clamp the chains or steel wires and to avoid the chains, steel wires and anchor chains.

Features

1. Applicable to the tug, anchor handling and supply vessels or other types of ships;
2. Shark jaws with towing pins;
3. Electric-driven or Hydraulic-driven;
4. Suitable for anchor chains and wire ropes;
5. Remote-controlled operations;
6. Emergency release system with push of a button
7. Replaceable jaw inserts for different chain sizes
8. Other accessories: hydraulic pump station, electrical control panel)

Technical Parameters

1. Capacity: 80~700 tonnes
2. Material: Steel
3. Surface: Smoothened with no burs or sharp edges;
4. Painting: as you require
5. Certificate: CCS, ABS,BV, GL, DNV,LR,RINA etc.
6. Customized size as you require

Technical specification:

Basic Parameters for Your Reference

Shark Jaw Model	Towing Pin Model	Bollard Pull(ton)	Holding Capacity(ton)	Power Required(kw)
SJ-100	TP-100	40	100	15
SJ-200	TP-200	60	200	22
SJ-300	TP-300	85	300	22
SJ-400	TP-400	120	400	30
SJ-500	TP-500	150	500	30
SJ-700	TP-700	200	700	37
