    HVG MARINE MOORING EQUIPMENT 0012

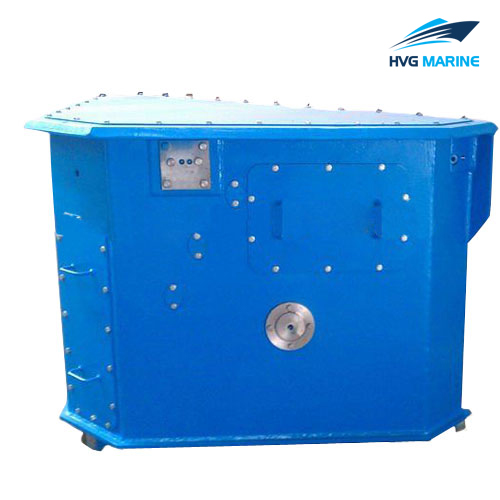

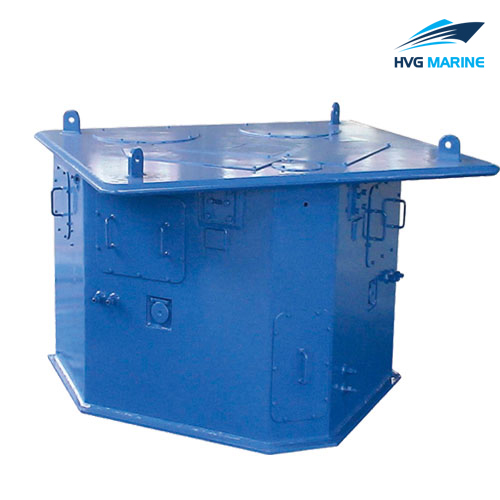

    HVG MARINE MOORING EQUIPMENT 0012: Hydraulic Shark Jaw

    Hydraulic shark jaw is driven by hydraulic pump station to clamp the wire or chains and avoid the sliding during the anhor handling operation.

    Features

    • 1. Shark jaws are suitable both the anchor chains and wire ropes;
    • 2. Replaceable jaw inserts for different chain sizes;
    • 3. Raised and lowered using heavy duty marine grade hydraulic cylinders;
    • 4. Jaws can be retracted to the same level with the deck;
    • 5. Remote-controlled operations from a control panel;
    • 6. A dedicated hydraulic power is provide with each unit

    Specification

    • 1. Safe Working Load: 300ton;
    • 2. Bollard Pull: 85ton;
    • 3. Holding Capacity: 300ton;
    • 4. Required Power: 22KW
    • 5. Color: painted as what you require;
    • 6. Smooth Surface without burs or sharp edges;
    • 7. Certificate: CCS, ABS,BV, GL, DNV,LR,RINA etc.

    Technical specification:

    • Technical Parameters for Your Reference
    Shark Jaw Model Towing Pin Model Bollard Pull(ton) Holding Capacity(ton) Power Required(kw)
    SJ-100 TP-100 40 100 15
    SJ-200 TP-200 60 200 22
    SJ-300 TP-300 85 300 22
    SJ-400 TP-400 120 400 30
    SJ-500 TP-500 150 500 30
    SJ-700 TP-700 200 700 37
