HVG MARINE MOORING EQUIPMENT 0008

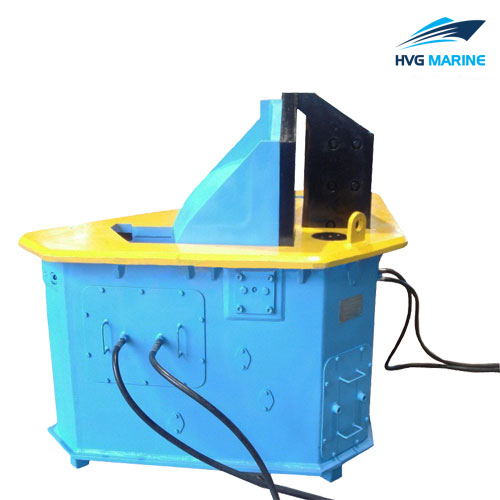

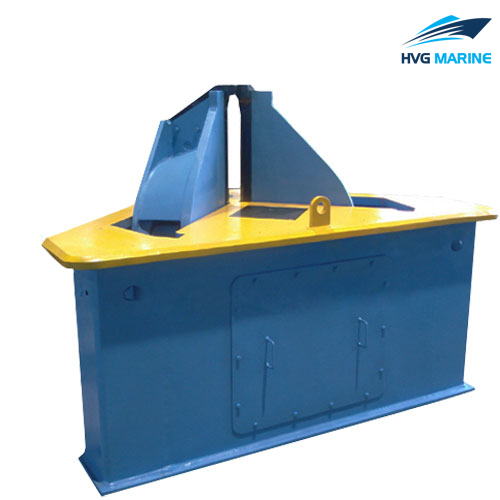

HVG MARINE MOORING EQUIPMENT 0008: 80-400 ton Marine Shark Jaw

The shark jaws designed for tug, anchor-handling and supply vessel are responsible for the three tasks-towing, anchor handling and supplying. In order to ensure the safety, fast speed and efficiency of anchor handling operations for drilling platform, the tug, anchor-handling and supply vessels are all equipped with shark jaw device. The shark jaw device consists of shark jaws welded on fantail deck, towing pins, stern roll, hydraulic pump unit and electric control and other units.

Features

1. Remote controlled by local/wheelhouse remote control panel;
2. With hydraulic pump unit, electrical box, control panel;
3. Retractable and Replaceable Jaws for Different Sizes of Chains;
4. Quick release system;
5. Driven by Hydraulic;
6. Shark jaws flush with the deck when not in operation

Specification

1. Safe Working Load: 80~400tons;
2. Max. Chain Size: 40~114mm;
3. Max. Wire Size: 45~110;
4. Surface: Smoothened with no burs or sharp edges;
5. Color: red, blue, gray etc.;
6. Certificate: CCS, LR, BV, ABS etc.

Technical specification:

Technical Parameters for Your Reference

Type	Rated Tension(KN)	Anchor Chain Dia.(mm)	Steel Wire Dia.(mm)	Weight(T)
SJ-200	2000	56~84	50~80	4.6
TP-200	2000	56~84	50~80	3.2
SJ-300	3000	66~94	60~90	7.3
TP-300	3000	66~94	60~90	4.5
SJ-400	4000	76~114	80~120	10.3
TP-400	4000	76~114	80~120	6.2
