HVG MARINE MOORING EQUIPMENT 0010

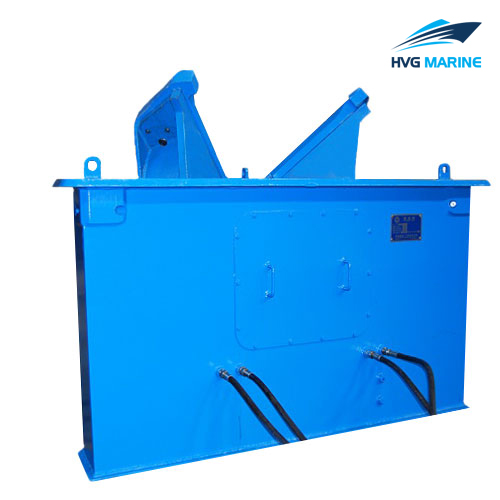

HVG MARINE MOORING EQUIPMENT 0010: Fork Type Shark Jaw

Marine shark jaws include fork type jaws and triplex shark jaws. They are welded on various vessels to ensure the safety, fast speed, effeiciency of anchor handling operations. The main function of shark jaws is clamping the anchor chains or wire ropes tightly preventing the sliding of chains or wire ropes.

Features

1. Large range of capacity from 100 to 700 tonnes;
2. Applicable to both anchor chains and wire ropes;
3. Replaceable jaw inserts for different chain sizes;
4. Remote controlled by control panel;
5. Driven by hydraulic pump station;
6. Quick release system;
7. Watertight shark jaws mounting frame

Specification

1. Shark Jaw Capacity: 100~700 tonnes;
2. Towing Pin Capacity: 100~700tonnes;
3. Bollard Pull: 40~200tonnes;
4. Required Power: 15~37KW;
5. Surface: Smoothened with no burs or sharp edges;
6. Color: Red, Blue, Gray etc.
7. Certificate:CCS, ABS,BV, GL, DNV,LR,RINA etc.
8. Application: for tug, anchor-handling and supply vessels

Technical specification:

Basic Technical Parameters for Your Reference

Shark Jaw Model	Towing Pin Model	Bollard Pull(ton)	Holding Capacity(ton)	Power Required(kw)
SJ-100	TP-100	40	100	15
SJ-200	TP-200	60	200	22
SJ-300	TP-300	85	300	22
SJ-400	TP-400	120	400	30
SJ-500	TP-500	150	500	30
SJ-700	TP-700	200	700	37
