HVG MARINE MOORING EQUIPMENT 0009: Shark Jaw and Towing Pin

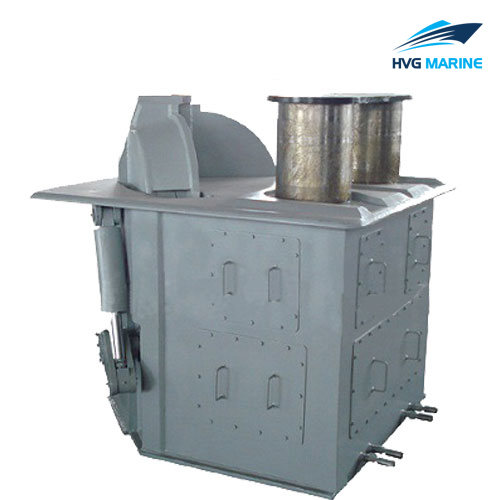

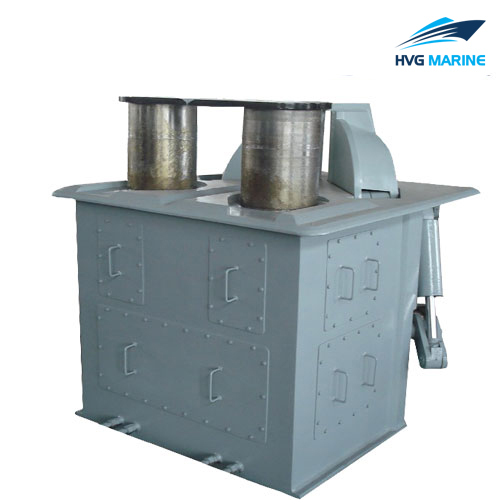

Shark jaw and towing pin are two parts of shark jaw device. Shark jaw’s main function is to clamp the anchor chains or wire ropes tightly to avoid sliding. Towing pin is used to block chain or wire rope, having guide function during the anchor handling and towing operations.

Features

1. Hydraulic-driven;
2. Remote-controlled operations;
3. Emergency release system;
4. Jaws suitable for anchor chains and wire ropes;
5. Jaws rise during the operation, flush with the deck when not in operation;
6. Replaceable jaw inserts for different chain sizes
7. Other accessories: hydraulic pump station, electrical box,control panel etc.
8. Provide third party certification: CCS, ABS,BV, GL, DNV,LR,RINA etc.

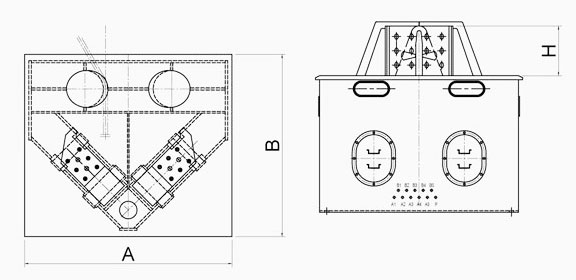

Planform of Shark Jaw and Towing Pin

Technical specification:

Performance Parameters of Common Shark Jaws
Performance Parameters of Common Shark Jaws
Technical Parameters for Reference

S.W.L (T)	200	300	500	800
Max. Wire Dia.(mm)	85	90	102	140
Max. Height on Deck(mm)	500	500	440	500

S.W.L (T)	200	300	500	800
Max. Wire Dia.(mm)	600	700	800	800
Max. Height on Deck(mm)	300	300	350	450

Type	Max. Chain Size(mm)	Max. Wire Size(mm)	SWL(Ton)	Dimension(mm)
Type	Max. Chain Size(mm)	Max. Wire Size(mm)	SWL(Ton)	A	B	H
SJ-80	40	45	80	1600	1500	400
SJ-100	54	52	100	1920	1700	420
SJ-200	78	72	200	2200	2080	630
SJ-350	105	96	350	2750	2400	650
SJ-400	114	110	400	3400	2620	700
