HVG STEEL SHEET PILE 0023

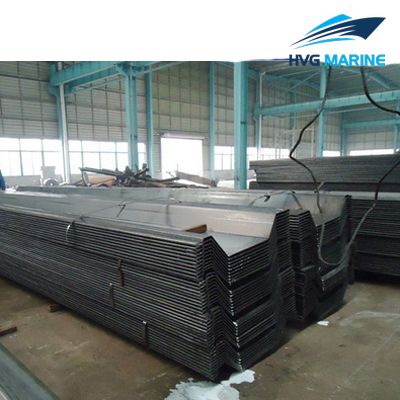

HVG STEEL SHEET PILE 0023: L/S Type Steel Sheet Pile

L/S type steel sheet pile is mainly used for the support of bank, dam wall, digging trench and ditching. It has advantages of light section, taking up little space of pile wall and being in the same direction of lock. All of this characters make the construction convenient, and is suitable for municipal engineering excavation and construction.

Product Details:

1. Good corrosion resistance performance.
2. The design and production cycle is short, the performance of it can be customized.
3. For construction task, it can reduce the space requirement.
4. Large width make installation convenient
5. Special specification can be made according to customers requirements

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification

L Type Steel Sheet Pile

Type	Width	Height	Thickness	Weight	Section Modulus
Type	mm	mm	mm	kg/m	cm³/m
L1.5	700	100	3	21.4	145
L2	700	150	3	22.9	223
L3	700	150	4.5	35	329
L4	700	180	5	40.4	442
L5	700	180	6.5	52.7	566
L6	700	180	7	57.1	606
