HVG STEEL SHEET PILE 0025

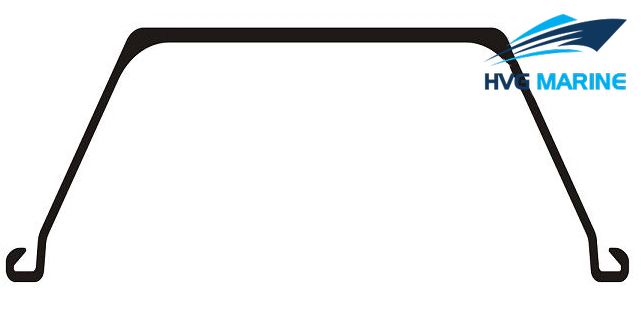

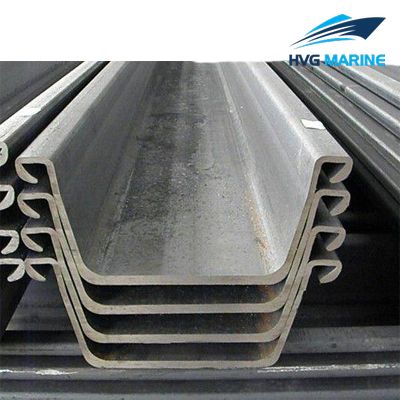

HVG STEEL SHEET PILE 0025: Japanese Standard U Shape Sheet Pile

Japanese standard U shape sheet pile is a kind of high efficient energy saving and environmental protection construction material.And its character greatly improves the section modulus and flexural stiffness to ensure sectional mechanics can be played fully.Special specification can be made according to customers requirements.

Product Details:

1. Width: 400-600mm
2. Height: 85-210mm
3. Thickness: 8-18mm
4. Standard: JISA 5523/ JISA 5528
5. Good corrosion resistance performance.
6. The use of high tensile steel guarantee the performance of sheet pile

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification:

Type	Width	Height	Thickness	Section Area	Weight
Type	mm	mm	mm	cm²/m	kg/m
U-Ⅰ	400	85	8	45.21	35.5
U-Ⅱ	400	100	10.5	61.18	48
U-Ⅲ	400	125	13	76.42	60
U-ⅢA	400	150	13.1	74.4	58.4
U-Ⅳ	400	170	15.5	96.99	76.1
U-ⅤL	500	200	24.3	133.8	105
U-ⅥL	500	225	27.6	153	120
U-ⅡW	600	130	10.3	78.7	61.8
U-ⅢW	600	180	13.4	103.9	81.6
U-ⅣW	600	210	18	135.3	106
