HVG STEEL SHEET PILE 0021

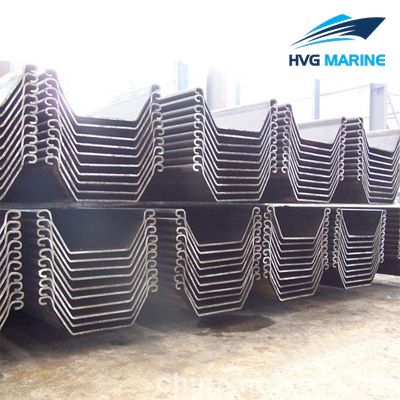

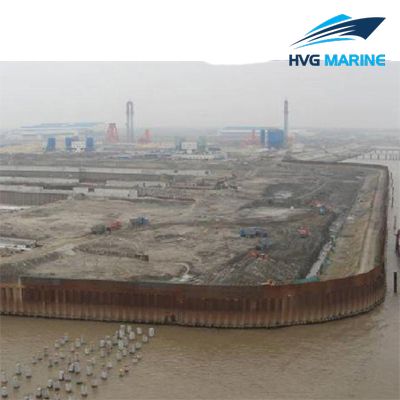

HVG STEEL SHEET PILE 0021: U Shape Steel Sheet Pile for Embankment

U shape steel sheet pile for embankment has reasonable structure design, and the forming process in advanced, which make the section modulus and the ratio of weight increasing continually. It has rich specifications. According to the actual situation of engineering, the sheet pile which is most ecmonic with reasonable cross section can be chosen to realise the design optimization.

Product Details:

1. It is designed and produced according to European standard
2. The structure of it is symmetrical, which make it can be used repeatedly
3. Higher moment of inertia reduce structural deformation
4. The severe corrosion parts have been thickened
5. Special specification can be made according to customers requirements.

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification:

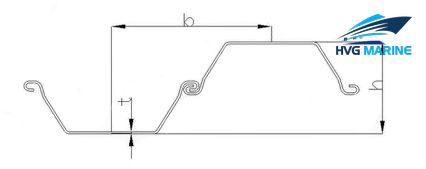

Type	Width	Height	Thickness	Section Area	Weight
Type	mm	mm	mm	cm²	kg/m
U7-750	750	320	5	71.8	42.3
U7-900	900	320	5	68.8	48.2
U7-850	850	320	5	69.4	46.3
U8-750	750	320	6	86.1	50.7
U8-850	850	320	6	83	55.4
U8-900	900	320	6	81.8	57.8
U9-750	750	320	7	100	58.9
U9-850	850	320	7	96.5	64.4
U9-600	600	320	7	108.3	50.7
U9-900	900	320	7	95	6701
U10-700	700	310	9	129.6	71.2
U10-1050	1050	310	9	116.2	95.8
U10-450	450	360	8	147.7	52.2
