HVG STEEL SHEET PILE 0020

HVG STEEL SHEET PILE 0020: Box Type Sheet Pile

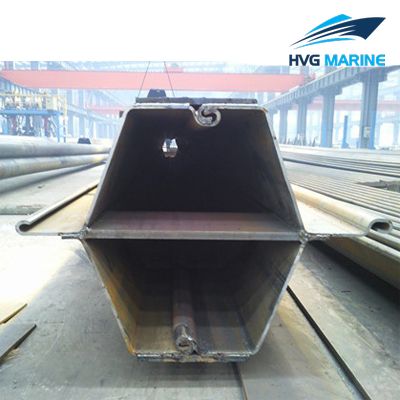

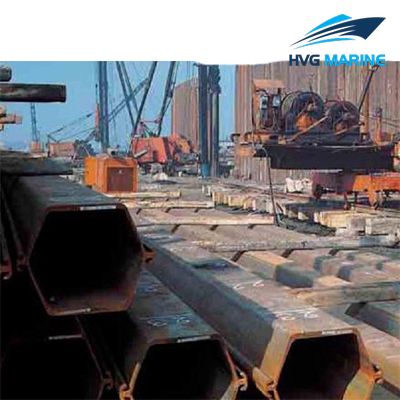

Box type sheet pile is a kind of new combined waterproof steel sheet pile. It is consisted of two U-shaped hot rolled sheet piles, two side panels and a baseplate. It greatly reduce the product cost and shorten the construction period. Using the traditional construction method, the method is simple with high degree of mechanization.

Product Details:

1. Perimeter: 230-245 cm
2. Section area: 198-288 cm²
3. Large width resulting in high installation performance
4. High tensile strength
5. Extremely competitive section modulus

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification:

Type	b	h	Perimeter	Section Area	Mass
Type	mm	mm	cm	cm²	kg/m
B-1 14-2	750	451	230	198	155.8
B-1 16-2	750	454	231	220	172.5
B-1 17-2	750	455	231	227	178.1
B-1 18-2	750	486	239	225	177
B-1 20-2	750	489	240	247	193.8
B-1 21-2	750	490	240	254	199.3
B-1 23-2	750	492	244	260	204.2
B-1 25-2	750	495	245	281	220.8
B-1 26-2	750	496	245	288	226.4
