HVG STEEL SHEET PILE 0015

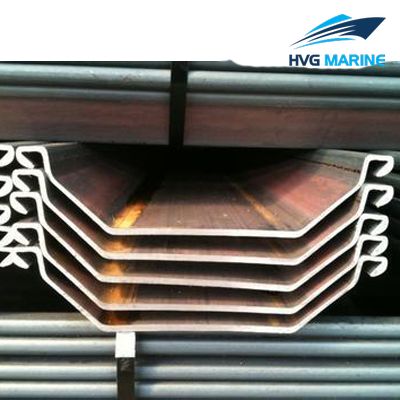

HVG STEEL SHEET PILE 0015: 600*150 Hot Rolled Steel Sheet Pile

HVG Marine Group could design and manufacture kinds of steel sheet piles, including u type series, Z type series, L/S type series, Corner piles, Box pile, and many combined sheet piles. If you have any requirement, please don’t hesitate to contact us.

Product Details:

1. Material: Q235,A295,Q345,Q420
2. More economic price
3. Large width save the hoisting and driving time effectively
4. Good corrosion resistance performance.
5. Special specification can be made according to customers requirements

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

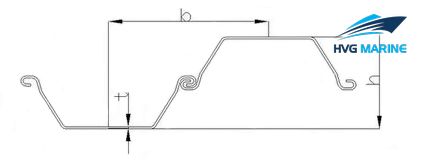

Technical specification:

Specifiction:

Type	Width	Height	Thickness	Section Area	Weight
Type	mm	mm	mm	cm²/m	kg/m
U5-1	600	150	9.5	119.8	56.4
U5-2	600	150	10	141.6	66.7
U6-1	600	280	6	89.5	42.2
U7-1	600	300	6	93.42	44
U7-2	600	340	6	98.09	46.2
U7-3	600	360	6	103.34	46.9
