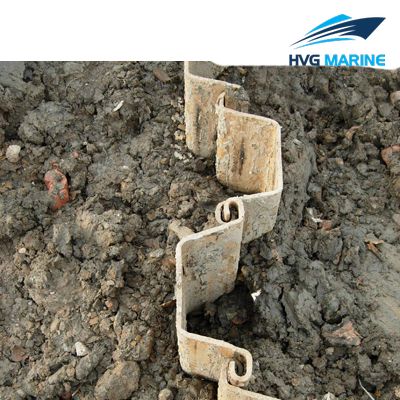

HVG STEEL SHEET PILE 0011

HVG STEEL SHEET PILE 0011: 400*180mm Cold Formed Steel Sheet Pile

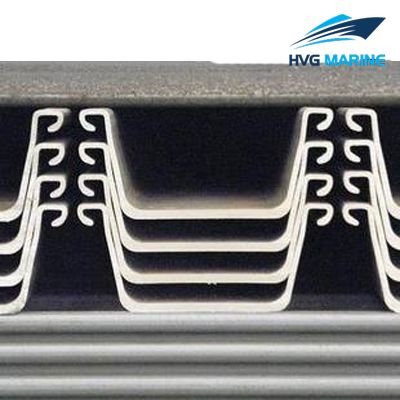

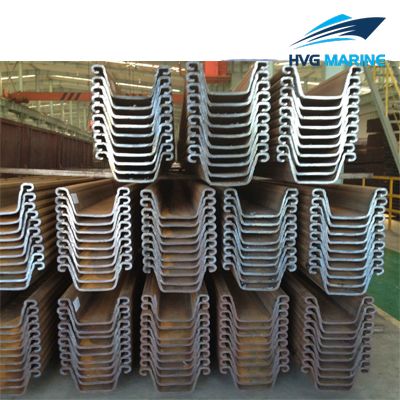

Cold formed steel sheet pile adopts thin steel. The production of it is lower and the price is cheaper. According to the actual situation of engineering, the sheet pile which is most ecmonic with reasonable cross section can be chosen to realise the design optimization. And it has wide range of section modulus, suitable for various type of construction purpose.

Product Details:

1. Height: 100-180mm
2.Thickness: 10-14mm
3. It is designed and produced according to European standard
4. The severe corrosion parts have been thickened
5. Special specification can be made according to customers requirements.

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification:

Type	Width	Height	Thickness	Section Area	Weight
Type	mm	mm	mm	cm²/m	kg/m
U4-1	400	100	10	72.2	56.68
U4-2	400	150	10	79.9	62.72
U4-3	400	180	10	84.5	66.33
U4-4	400	100	12	85.4	67.07
U4-5	400	150	12	94.6	74.23
U4-6	400	180	12	100.2	78.66
U4-7	400	150	14	111.2	87.26
U4-8	400	180	14	117.6	92.32
