HVG STEEL SHEET PILE 0013

HVG STEEL SHEET PILE 0013: 450-1050mm Width Steel Sheet Pile

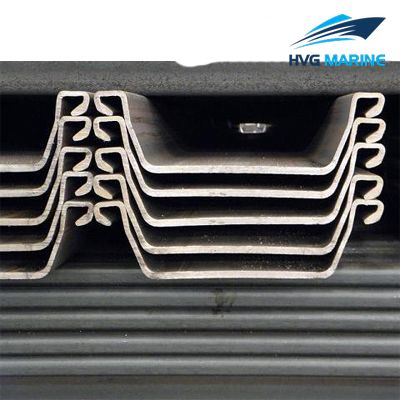

steel sheet pile is formed by cold bending or hot rolling equipment with continuous rolling. The side lock of it can be connected together to form a steel structure sheet pile wall. The structure of it is symmetrical, which make it can be used repeatedly. And special specification can be made according to customers requirements.

Product Details:

1. Width: 450-1050mm
2. Height: 310-600mm
3. Good corrosion resistance performance.
4. Higher moment of inertia reduce structural deformation
5. Large width increase the effectiveness of sinking pile

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Technical specification:

Specification:

Type	Width	Height	Thickness	Section Area	Weight
Type	mm	mm	mm	cm²/m	kg/m
U8-450	450	360	8	147.7	52.2
U8-575	575	360	8	133.1	60.1
U8-600	600	360	8	131	61.7
U7-600	600	320	7	108.3	50.7
U7-700	700	320	7	129.6	58.9
U7-850	850	320	7	96.5	64.4
U7-900	900	320	7	95	67.1
U7-1050	1050	310	7	116.2	95.8
