    HVG STEEL SHEET PILE 0014

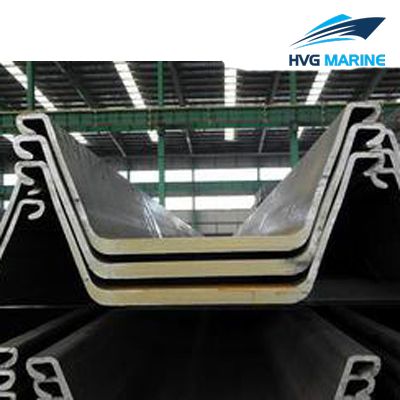

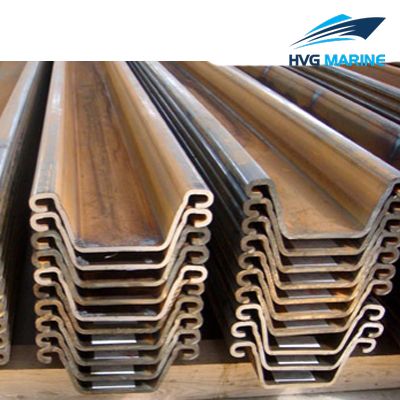

    HVG STEEL SHEET PILE 0014: 500*200 Hot Rolled Steel Sheet Pile

    Hot rolled steel sheet pile has been widely applied in foundation construction, such as dick reinforcement, cofferdam, building dock and water retaining wall, mountain slope protection and so on. Compared with other materials, steel sheet pile has advantages of simple and flexible operation, smaller working space, shorter construction period.

    Product Details:

    • 1. Material: Q235,A295,Q345,Q420
    • 2. Strong bearing capacity
    • 3. Good waterproof performance
    • 4. The construction of it are environmental protection
    • 5. It could be used repeatedly.

    Attention:

    • 1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
    • 2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

    Technical specification:

    • Specification:

    Type

    Width

    Height

    Thickness

    Section Area

    Weight

    mm

    mm

    mm

    cm²/m

    kg/m

    U5-1

    500

    200

    10

    97.5

    76.54

    U5-4

    500

    200

    12

    115.8

    90.9
