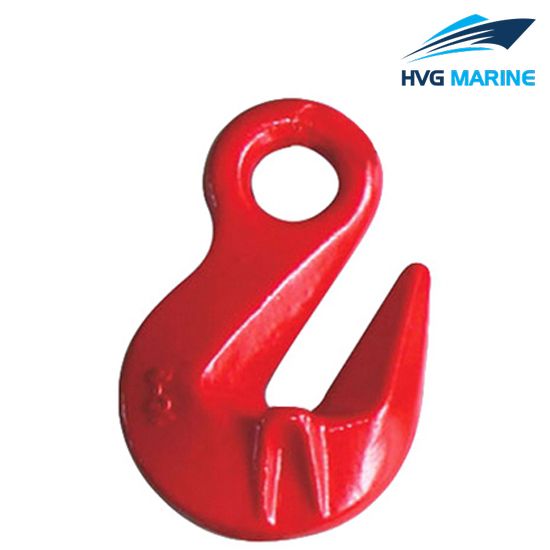

HVG RIGGING-LIFTING 0375: G80 Eye Shortening Grab Hook

G80 eye shortening grab hook is designed to use with G80 alloy chain and steel wire rope. It can be applied to shorten or hook long chain. And it is drop forged by high quality carbon steel and alloy steel with hot dip galvanizing on the surface. So it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product details:

1. Item: G80 eye shortening grab hook
2. Grade: 80
3. Material: alloy steel
4. Technology: drop forged
5. Surface: hot dip galvanized,self color
6. WLL: 1.2T-31.5T
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 6mm-32mm
10.Special specifications and marks can be made according to customers requirement

Technical specification:

Specification：

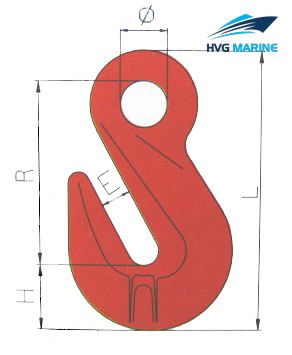

Code	Weight/kg	W.L.L.(T)	B.L.(T)	Φ(mm)	E(mm)	H(mm)	R(mm)	L(mm)
6	0.14	1.12	4.48	13.5	8	16	51	75.2
7/8	0.25	2	8	17	10.8	18.5	60.5	88.5
10	0.65	3.15	12.6	20	13	29	79.5	121.5
13	1.39	5.3	21.2	26	16.5	42.8	99.7	158
16	2.2	8	32	30	19.2	45.7	104	169
20	4.6	12.5	50	37	24	56	140	219
22	8.2	15	60	44	28	68	165	259
26	9.8	21.2	84.8	41	30	77	188.5	298
32	19.4	31.5	126	57	38	95	228	361
