HVG RIGGING-LIFTING 0369

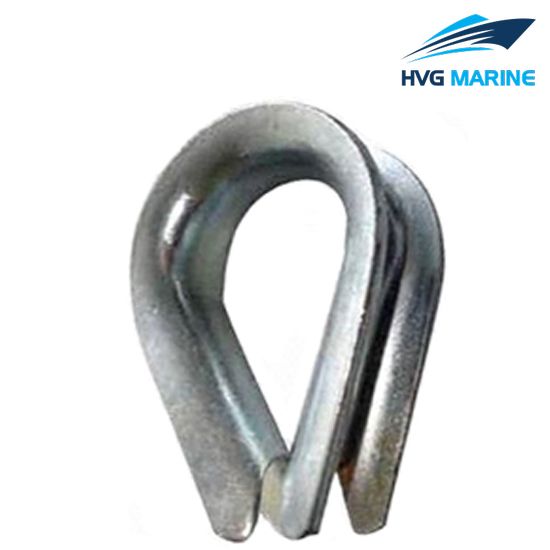

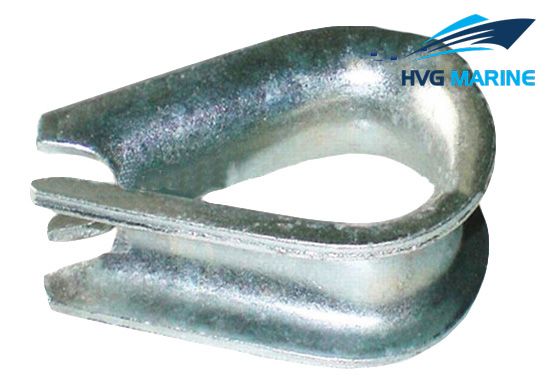

HVG RIGGING-LIFTING 0369: DIN6899 TypeA Wire Rope Thimble

Our company has produced this model for many years and we also co-operate with other excellent factories, so the price is very competitive. If you want to get more specific information, please feel free to contact with us.

Details:

1. Model: DIN6899 TypeA Wire Rope Thimble
2. Material: Carbon Steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 3mm to 24mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

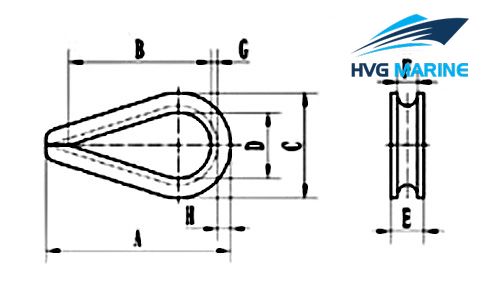

Technical specification:

Specification:

Size(mm)	A	B	C	D	E	F	G	H	Weight/pcs(kg)
3	28	21.5	16	10	5	3	1	2	4
3.5	30	23.5	17	11	5.5	3.5	1	2	4.2
4	34	26.6	19	12	6	4	1	2.5	5.2
6	38	30	22	14	8	6	1	3	8.5
7	43	33	24	15	9	7	1.2	3.3	13
8	44	35	26	16	10	8	1.2	3.8	15
9	50	39	29	18	11.4	9	1.2	4.3	19
10	56	43	32	20	13	10	1.5	4.5	28
11	63	47.5	36	22	14	11	1.5	5.5	35
12	68	51.5	40	24	15	12	1.5	6.5	40
13	75	56.5	44	26	17	13	2	7	63
14	82	61	48	28	18	14	2	8	77
16	91	69.5	54	32	21	16	2.5	8.5	123
18	102	78	59	35	24	18	3	9	185
20	114	86.5	68	40	28	20	4	10	315
22	126	95	76	44	30	22	4	12	364
24	138	103.5	84	48	32	24	4	13	417
