HVG RIGGING-LIFTING 0361

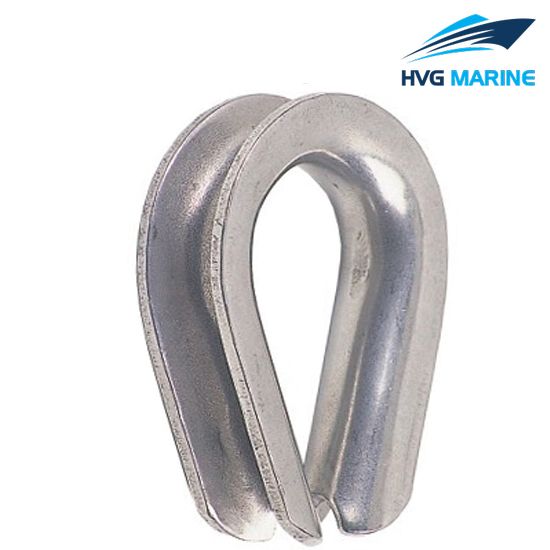

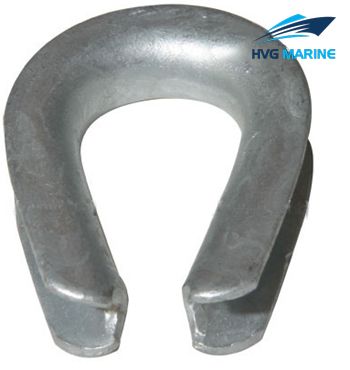

HVG RIGGING-LIFTING 0361: Extra Heavy Wire Rope Thimbles:

Extra heavy wire rope thimbles are important for marine riggings. Our company has produced this product for many years and it is available in sizes ranging from 1/4 inch to 1 inch. The price is also very competitive. Welcome to contact with us.

Details:

1. Model: Extra Heavy Wire Rope Thimble
2. Material: Carbon steel, stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 1/4 inch to 1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Technical specification:

Specification:

For rope diam. inches	Diamensions in inches						Weight pounds per 100
For rope diam. inches	Overall length	Overall width	Length inside	Width inside	Overall thickness	Max.pin diam.	Weight pounds per 100
1/4	2-3/16	1-1/2	1-5/8	7/8	13/32	13/16	7.5
5/16	2-1/2	2-13/16	1-7/8	1-1/16	1/2	15/16	14
3/8	2-7/8	2-1/8	2-1/8	1-1/8	21/32	1-1/16	25
1/2	3-5/8	2-3/4	2-3/4	1-1/2	27/32	1-7/16	51
5/8	4-1/4	3-1/8	3-1/4	1-3/4	1	1-5/8	75
3/4	5	3-3/16	3-3/4	2	1-1/4	1-7/8	147
1	6-1/8	4-15/16	4-1/2	2-1/2	1-9/16	2-3/8	291.66
