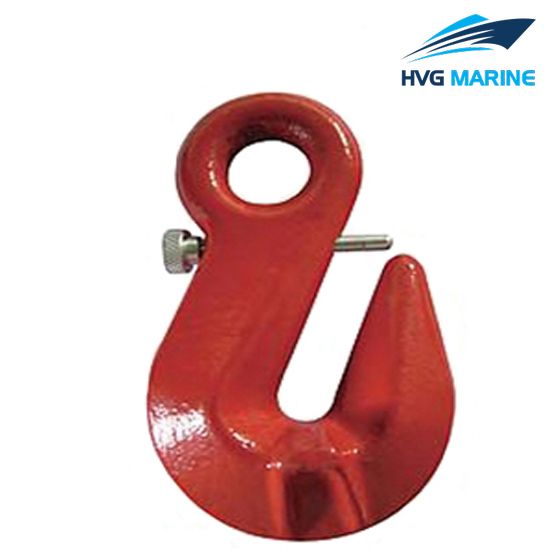

    HVG RIGGING-LIFTING 0374: New Style Eye Grab Hook With Safety Pin

    Hook is one of the most common sling in hoist machinery. And eye hooks are foolproof. They can used with omega links, connecting links and other lifting components. Besides, they can serve in many circumstances. In order to assure the quality of products and to be responsible to the clients, all the procedures from raw material purchase to delivery will be strictly examed.

    Product details:

    • 1. Item: New style eye grab hook with safety pin
    • 2. Grade: 80
    • 3. Material: alloy steel
    • 4. Surface: hot dip galvanized, zinc plated, self color
    • 5. Technology: casting
    • 6. Size: 6-32
    • 7. Breaking load: 4 times of working load
    • 8. Capacity:2T-5.3T
    • 9. Usage: lifting, rigging

    Technical specification:

    • Specification:
    Code Weight(kg) W.L.L(T) B.L.(T) B(mm) D(mm) M(mm) L(mm)
    7/8 0.29 2 8 50 9.5 17 88.5
    10 0.75 3.15 12.6 71 13 20 121.5
    13 1.62 5.3 21.2 96 15.5 26 158
