HVG RIGGING-LIFTING 0373

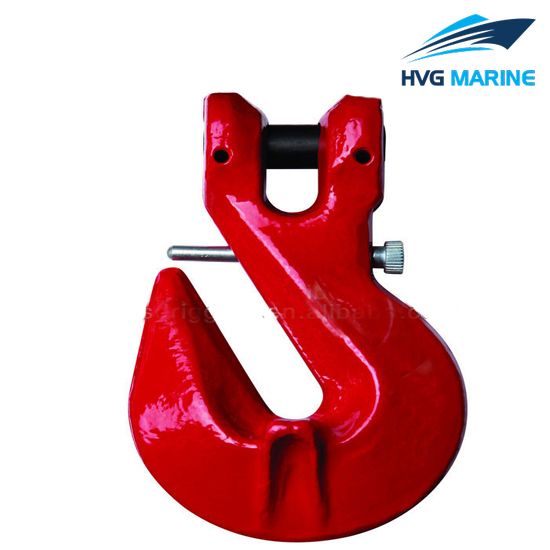

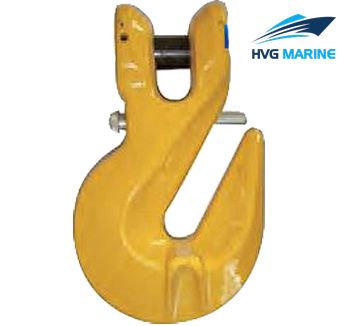

HVG RIGGING-LIFTING 0373: G80 Clevis Grab Hook

G80 clevis grab hook are simple to assemble with chains without any intermediate coupling-links. And its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment. Special specification and marks can be made according to customers requirement.

product details:

1. Type: European
2. Grade: 80
3. Material: alloy steel, carbon steel, stainless steel
4. Surface: hot dip galvanized, zinc plated, self color
5. Technology: casting, drop forged
6. Size:6-22
7. Breaking load: 4 times of working load
8. Capacity: 2T-15T
9. Usage: lifting, rigging
10. Special specifications and marks can be made according to customers requirement.

Technical specification:

Specification:

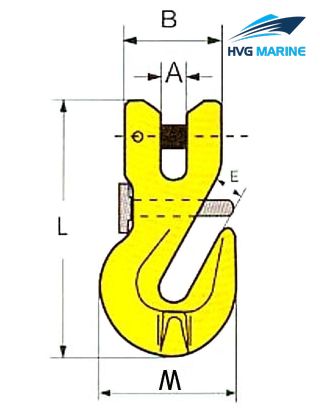

Code	Weight(kg)	W.L.L.(T)	B.L(T)	A(mm)	B(mm)	E(mm)	M(mm)	L(mm)
6	0.28	1.12	4.48	7.5	32	8	45.5	78
7-8	0.3	2	8	9	36	11	63	108
10	0.95	3.15	12.6	12	46	13	79	127
13	1.97	5.3	21.2	15	59	16	100	163
16	3.45	8	32	17.5	70	20	122	204
18-20	5.3	12.5	50	23	80	23	150.5	243
22	7.8	15	60	25.5	98	26	169	280
