HVG RIGGING-LIFTING 0319

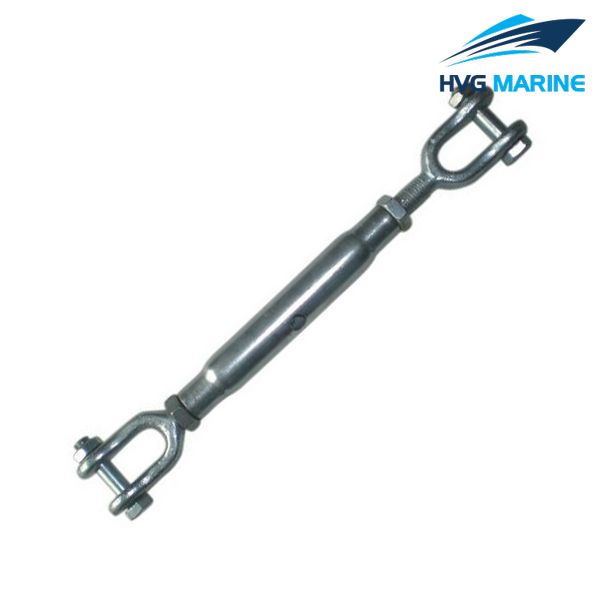

HVG RIGGING-LIFTING 0319: Alloy steel zinc plated DIN1478 turnbuckle

This product is made by high quality alloy steel with plalted zinc on the surface. And each turnbuckle body can be mixed and matched with jaw, eye and stub end. I believe its various category and good quality will satisfied you.

Product details:

1. Item: Alloy Steel Zinc Plated DIN 1478 Turnbuckle
2. Standard: DIN 1478 type
3. Material: alloy steel

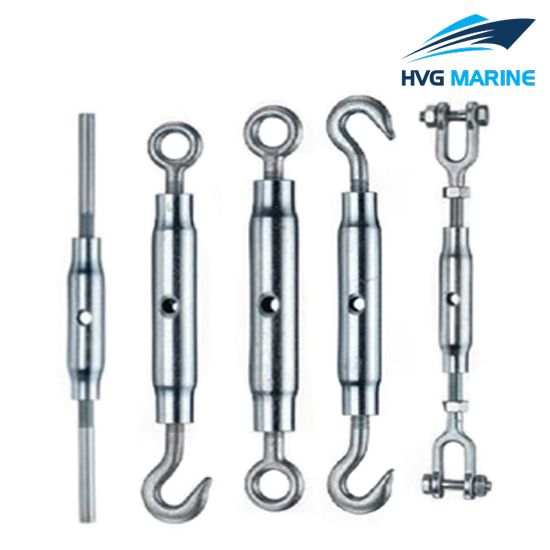

4. Type: hook&hook, eye &hook, eye&eye
5. Technology: forged
6. Surface: zinc plated, self color
7. Size: M6-M48
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement

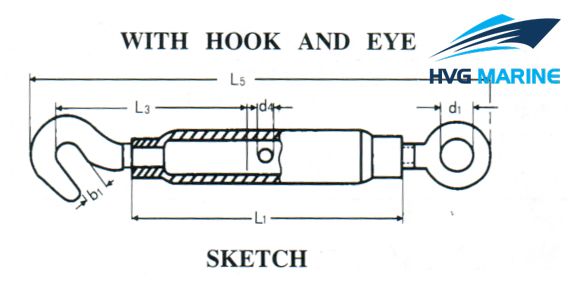

Technical specification:

Specification:

Thread	L1(mm)	L3(mm)	L5(mm)	b1(mm)	d1(mm)	d4(mm)	WT kg/100pcs
M6	110	85	172	8.5	9	6	11.6
M8	110	85	182	11	10	8	19.31
M10	125	112	213	13.5	14	8	31
M12	125	117	238	15.5	16	10	42
M16	170	138	320	19	22	10	89
M20	200	170	367	20.5	24	12	158
M24	255	205	447	26	27	12	292
M30	255	225	512	33	31	16	430
M36	295	255	568	44	43	16	605
M42	330	340	683	48	49	20	1160
M48	355	360	755	58	58	20	1800
