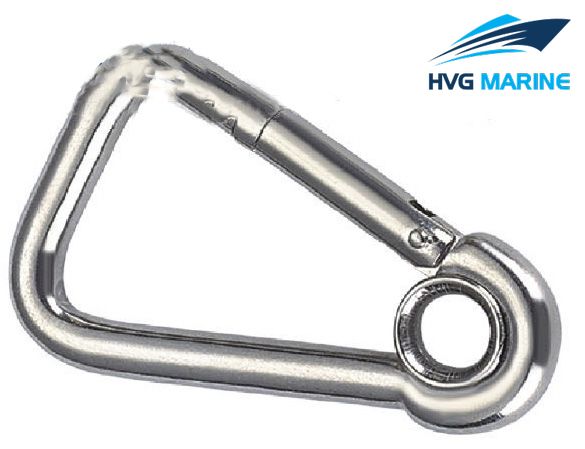

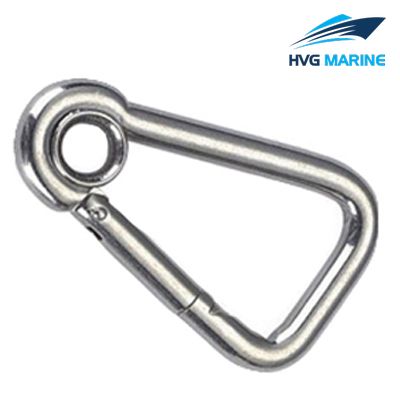

    HVG RIGGING-LIFTING 0317: Oblique Angle Snap Hook With Eye

    Oblique angle snap hook with eye is more solid than the snap hook without it. Because it is more convinient to link the connection. So it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment. Especially in the process of using stainless steel wire rope, if the length of it is not enough, we can use snap hooks to cannect.

    Product details:

    • 1. Item: Oblique angle snap hook with eye
    • 2. Material: stainless steel
    • 3. Technology: drop forged
    • 4. Surface:polished, zinc plated
    • 5. Size:6*60mm-11*120mm
    • 6. Usage: lifting industry
    • 7. Breaking load: 4 times of working load
    • 8. Special specifications and marks can be made according to customers requirement

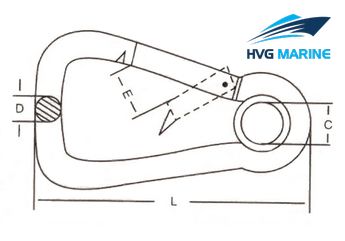

    Technical specification:

    • Specification：

    Size

    C

    D

    E

    L

    N.W.

    mm

    mm

    mm

    mm

    mm

    kg/100pcs

    6*60

    6

    6

    10

    60

    3

    8*80

    8

    8

    13

    80

    7

    10*100

    10

    10

    18

    100

    14

    11*120

    14

    12

    24

    120

    21.4
