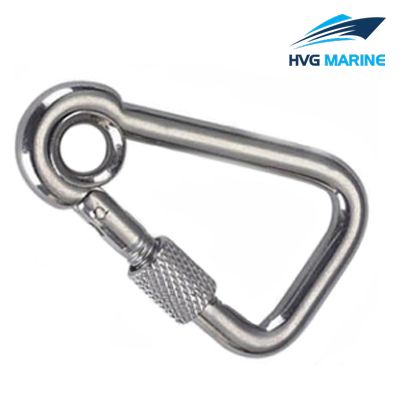

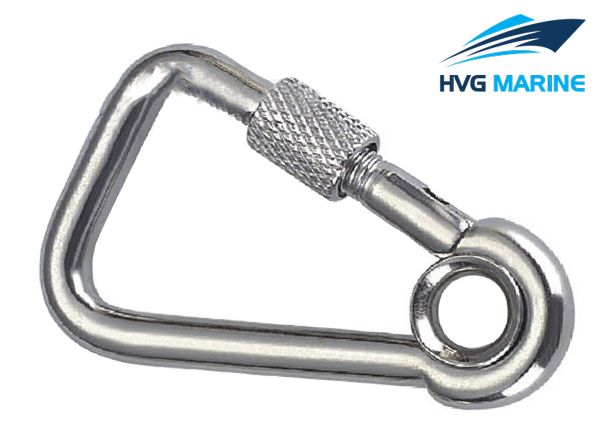

    HVG RIGGING-LIFTING 0316: Oblique Angle Snap Hook With Screw and Eye

    Oblique angle snap hook with screw and eye has bigger pulling force than others. Bacause the snap hook with screw has bigger bearing capacity than normal snap hook.. So, if it is used in the place with heavier bearing, to be on the safe side, it is recommemded that the snap hook with screw should be chosen.

    Product details:

    • 1. Item: Oblique angle snap hook with screw and eye
    • 2. Material: stainless steel
    • 3. Technology: drop forged
    • 4. Surface: polished, zinc plated
    • 5. Size:6*60mm-11*120mm
    • 6. Usage: lifting industry
    • 7. Breaking load: 4 times of working load
    • 8. Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification：

    Size

    C

    D

    E

    L

    W.L.L

    N.W.

    mm

    mm

    mm

    mm

    mm

    lbs

    kg/100pcs

    6*60

    6

    6

    9

    60

    250

    3.25

    8*80

    8

    8

    12

    80

    400

    7.2

    10*100

    10

    10

    16

    100

    650

    14.5

    11*120

    14

    11

    22

    120

    700

    21.7
