HVG RIGGING-LIFTING 0315

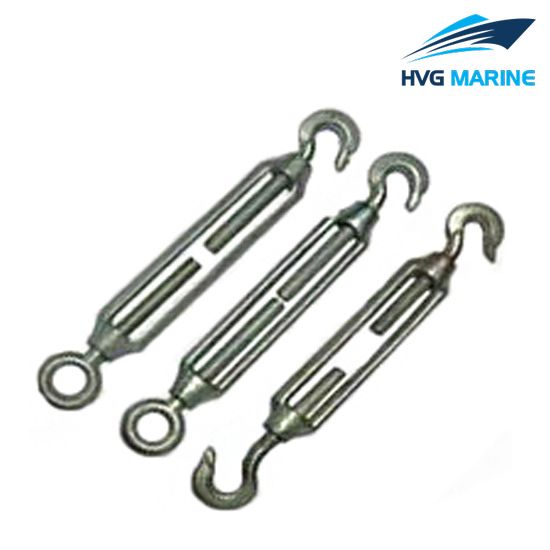

HVG RIGGING-LIFTING 0315: European Type Galvanized Carbon Steel Turnbuckle

European type galvanized carbon steel turnbuckle is made by high quality carbon steel with advanced international production process. And all the samples chosen from the finished products have past the international standard.So you can absolutely believe in the quality of products.

Product details:

1. Item: European type galvanized carbon steel turnbuckle
2. Standard: European type
3. Material: carbon steel

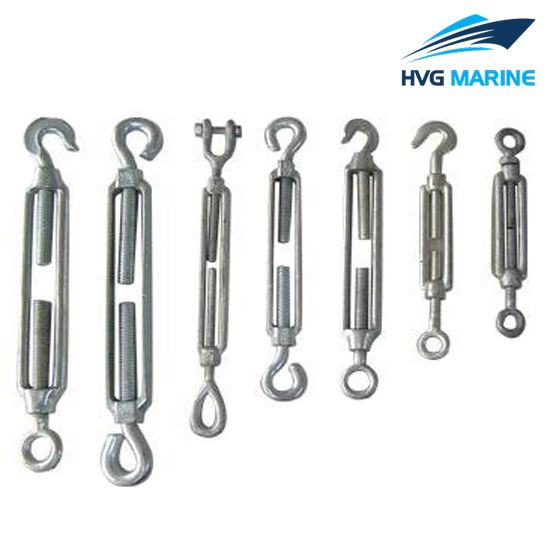

4. Type: hook&hook, eye &hook, eye&eye
5. Technology: forged
6. Surface: hot dipped galv, electro galv
7. Size: M6-M20
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement

Technical specification:

Specification:

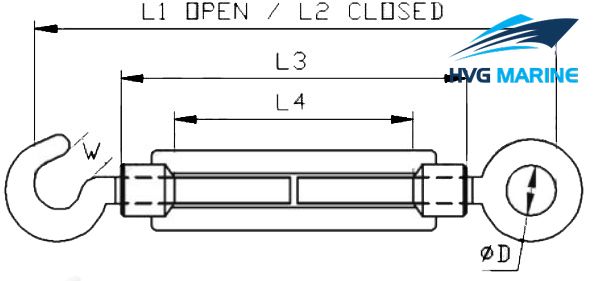

Size	D(mm)	L1(mm)	L2(mm)	L3(mm)	L4(mm)	WT(g)
M6	9	240	156	108	85	95
M8	10	250	180	115	77	155
M10	14	300	220	120	85	275
M12	16	320	240	125	90	420
M14	18	350	265	140	93	550
M16	22	396	280	170	116	1000
M20	24	462	330	200	132	1600
