HVG RIGGING-LIFTING 0313: Malleable Iron Turnbuckle

Our products are made by good quality raw material and advanced international production process. The quality of them are inspected professionally by skillful workers. So, they can be widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, ports, mining, oil & gas, fishing, offshore, construction and other industries.

Product detail:

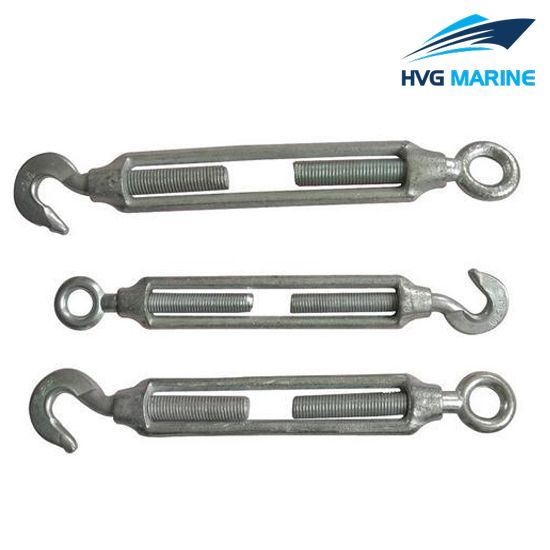

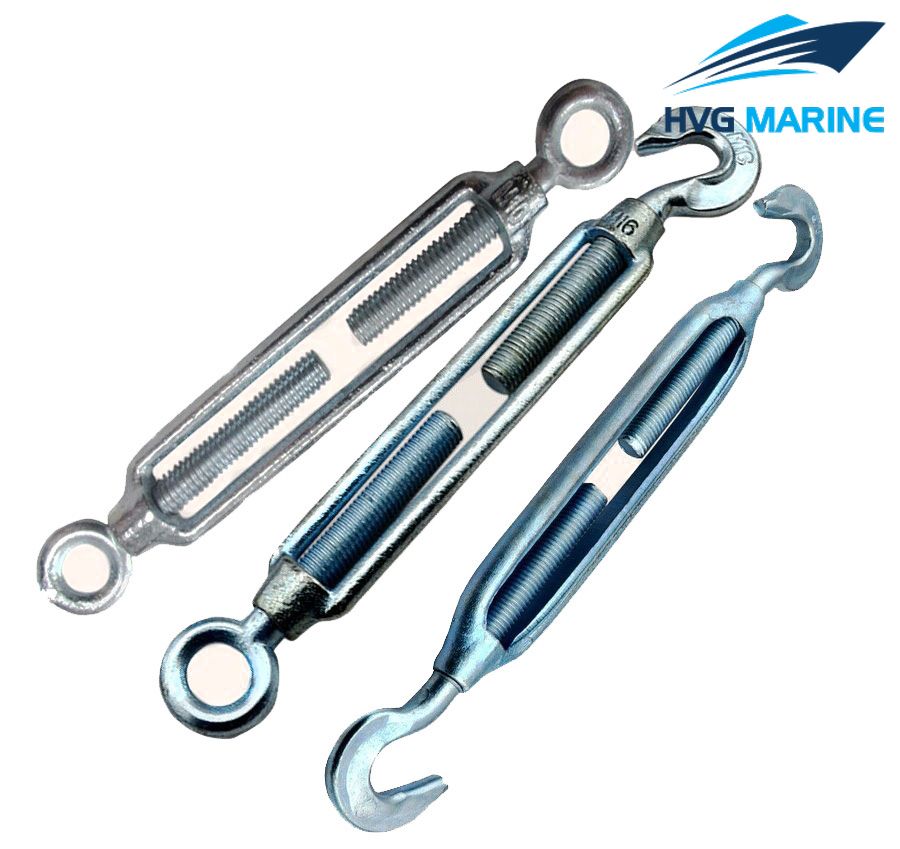

1. Item: malleable iron turnbuckle
2. Standard: commercial type
3. Material: malleable steel
4. Type: hook&hook, hook&eye, eye&eye, jaw&jaw
5. Surface: galvanized, self-color
6. Usage: chain and wire rope accessory
7. Size: custom design
8. Special specification and marks can be made according to customers requirement

Technical specification:

Specification:

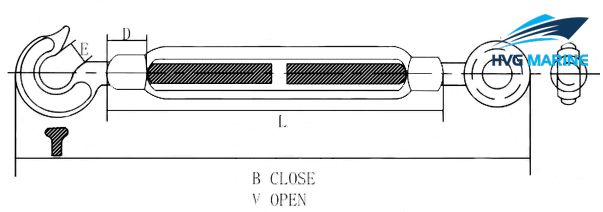

SWL(KG)	A	B	V	D	E	L	Weithg(KG)
SWL(KG)	A	B	V	D	E	L	Weithg(KG)	100	6x100mm	145	215	12	10	100	0.16
200	8x125mm	185	280	14	12	125	0.24
300	10x150mm	210	325	16	14	150	0.39
500	12x200mm	275	430	19	18	200	0.64
1000	16x250mm	345	540	23	24	250	1.44
1500	20x300mm	435	670	28	26	300	2.45
2200	22x320mm	480	740	34	32	325	3.6
3000	24x350mm	555	830	36	36	350	5
