HVG RIGGING-LIFTING 0311

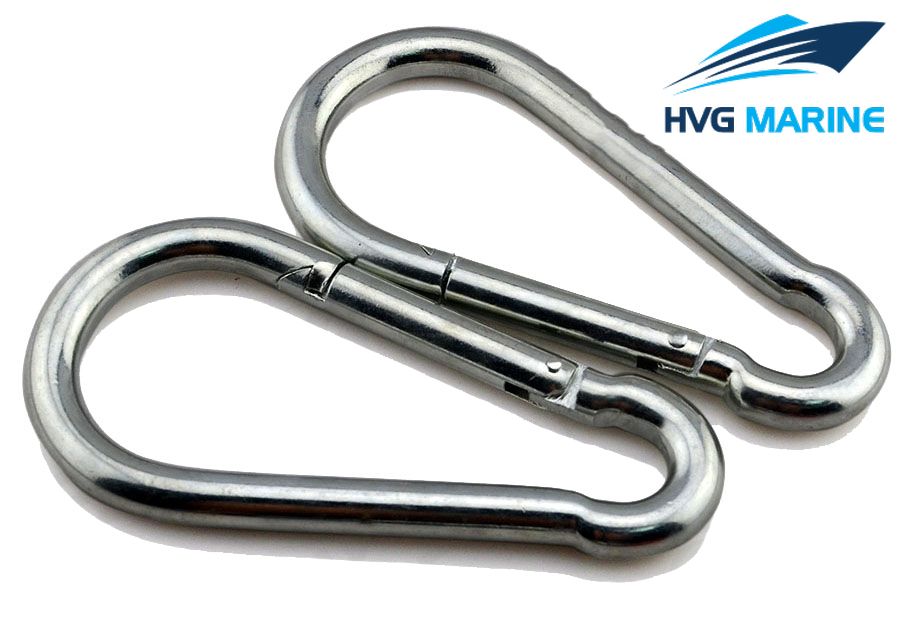

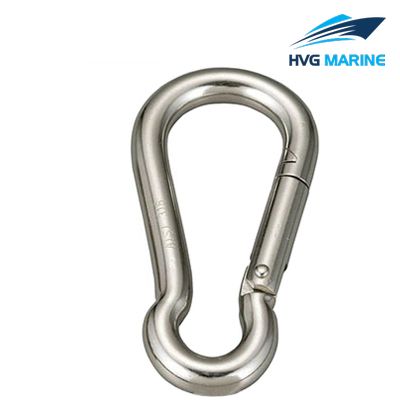

HVG RIGGING-LIFTING 0311: DIN5299 Snap Hook

DIN 5299 snap hook is made by high polished stainless steel with advanced international production process. It can be used to fast and effectively connect the protection. And the most important and convinent usage of it is carrying goods. Besides that, it have excellent corrosion resistant and brightness surface. So it could be used in decoration or the place with higher requirements.

Product details:

1. Item: Quick link
2. Material: high stainless steel, carbon steel
3. Technology: drop forged
4. Surface: polished, zinc plated
5. Size: 4mm-15mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement

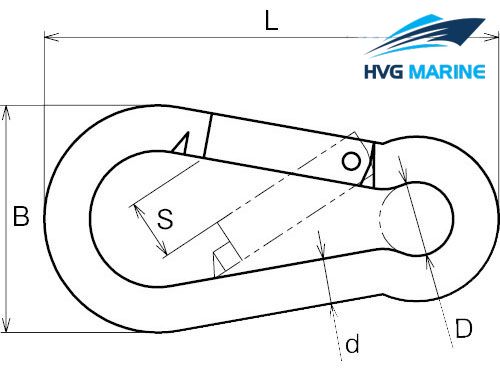

Technical specification:

Specification:

Size d	N.W	B	D	S	L
mm	kg/100pcs	mm	mm	mm	mm
4	0.8	20	7	7	40
5	1.6	25	8	7	50
6	2.8	30	9	8	60
7	4.5	35	10	8	70
8	6.3	40	12	9	80
9	9	45	12	10	90
10	12.5	50	16	11	100
11	19.2	57	18	16	120
12	25	67	20	19	140
13	35	74	22	25	160
14	45.5	86	22	35	180
15	61.8	90	25	37	200
