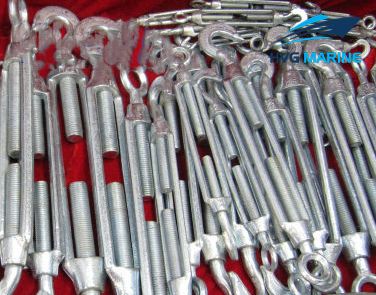

HVG RIGGING-LIFTING 0310: Turnbuckles DIN1480:

DIN1480 turnbuckles are made by high quality carbon steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. Because of the characteristics of it, it can be widely used in large construction site, large factory, shipping, bridge constraction and so on. And special specification and marks can be made according to customers requirement.

Product details:

1. Model NO.:DIN 1480
2. Material: Mild steel. Carbon steel. Malleable. Alloy steel. Stainless steel etc.

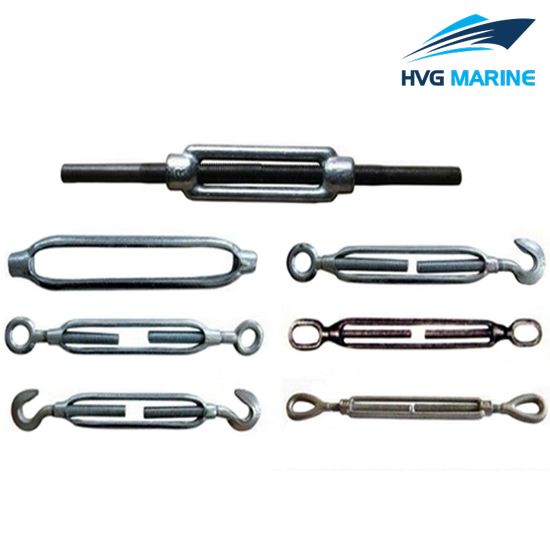

3. Type:Hook & Hook,Hook and Eye,Eye and Eye,etc
4. Usage:Marine Industry
5. Installation:External
6. Condition:New
7. Surface:Electric Galvanized, self-colored, hot dip galvanized
8. Customized: Yes
9. Size:M5-M56
10. Export Markets:Global
11. Packing:Carton with Pallet
12. Standard:ISO, CE, SGS

Technical specification:

Specification

Size	W.L.L. Ton	Body Length mm	N.W. Kg
M5	0.2	70	0.6
M6	0.22	110	0.078
M8	0.41	110	0.16
M10	0.65	125	0.29
M12	0.9	125	0.43
M14	1.1	140	0.62
M16	1.3	170	0.92
M18	1.5	180	1.25
M20	1.7	200	1.63
M22	3.2	220	2.22
M24	3.9	255	3.00
M27	4.5	255	3.35
M30	6.2	255	4.60
M33	7.3	295	6.65
M36	8.5	295	7.68
M39	10	330	10.41
M42	12	330	12.90
M45	16	355	16.00
M48	20	355	21.00
M52	23	355	23.00
M56	23	355	24.00
