HVG RIGGING-LIFTING 0305

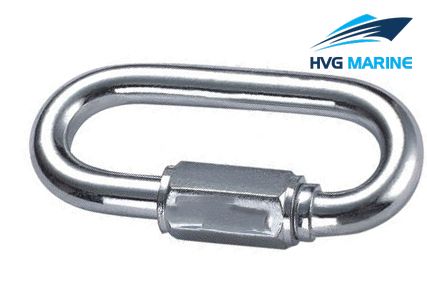

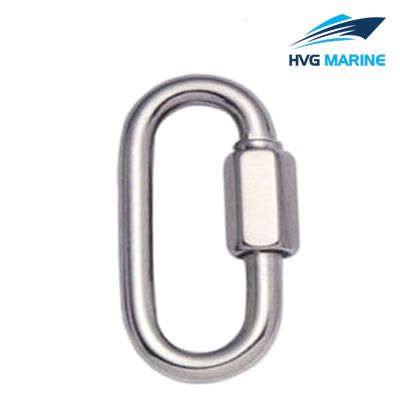

HVG RIGGING-LIFTING 0305: Quick Link

Quick link can be used to fast and effectively connect the protection. And the most important and convinent usage of it is carrying goods. Quick links are mainly made by high alloy steel. Because of its solid structure, it could be used widely in camping equipment, equipments for fitness centers and playgrounds.

Product details:

1. Item: Quick link
2. Material: stainless steel, carbon steel
3. Technology: drop forged
4. Surface: hot dip galvanized, zinc plated, polished
5. Size: 3.5mm-14mm
6. Usage: lifting industry, security connection
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification：

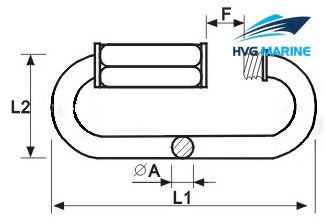

Size	A	L1	L2	F	W.L.L.
mm	mm	mm	mm	mm	lbs
3.5	3.5	36.5	17	5	175
4	4	40	19.5	5.5	500
5	5	49	23	6.5	650
6	6	58	26.5	7.5	875
7	7	65	30.5	8.5	1200
8	8	75	33.5	10.5	1525
9	9	82	35	11.5	1975
10	10	90	40.5	12.5	2300
12	12	107	47.5	14.5	2500
14	14	125	54.5	17	2800
