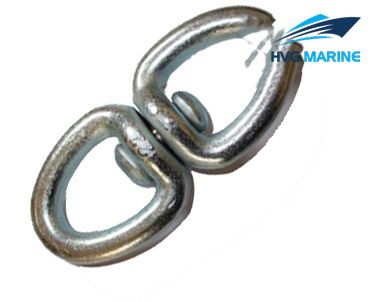

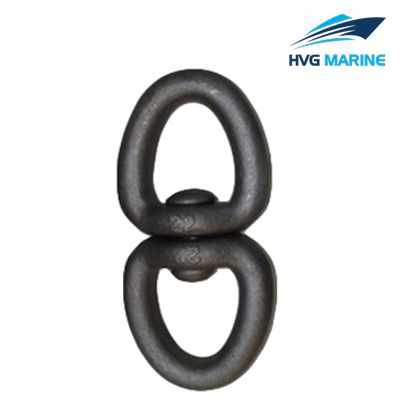

    HVG RIGGING-LIFTING 0304: Double Eye Swivel

    Double eye swivel is made by high quality carbon steel with hot dip galvanized on the surface. The working load of it is from 0.3 ton to 6 ton. And its size is from 8mm to 24mm. It has the advantages of small volume, light weight and high strength.So it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

    Product details:

    • 1. Item: Double eye swivel
    • 2. Material: carbon steel
    • 3. Technology: drop forged
    • 4. Surface: hot dip galvanized, zinc plated
    • 5. WLL:0.3T-6T
    • 6. Breaking load: 4 times of working load
    • 7. Usage: lifting, rigging
    • 8. Size: 8mm-24mm
    • 9. Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification：

    Size

    Φ

    A

    B

    WLL

    Weight

    mm

    mm

    mm

    mm

    ton

    kg

    8

    8

    30

    22

    0.3

    0.15

    10

    10

    38

    29

    0.7

    0.25

    12

    12

    40

    32

    1.2

    0.4

    14

    14

    46

    36

    2

    0.6

    16

    16

    50

    40

    3

    0.85

    18

    18

    55

    46

    3.5

    1.2

    22

    22

    70

    55

    5

    2

    24

    24

    80

    64

    6

    3
