    HVG RIGGING-LIFTING 0301

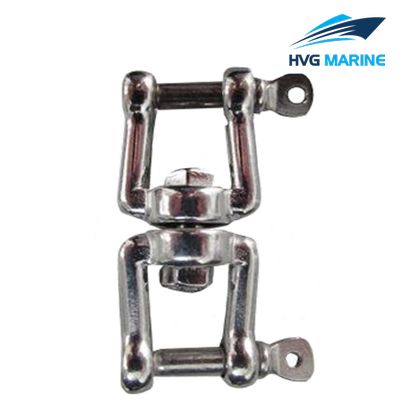

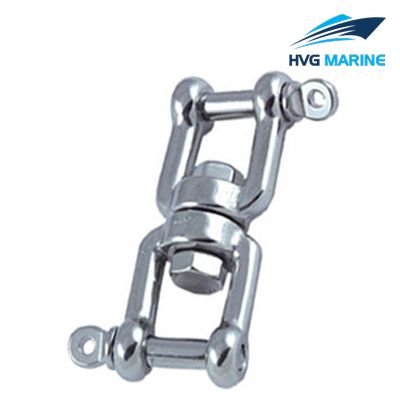

    HVG RIGGING-LIFTING 0301: Stainless Steel European Swivel Jaw and Jaw

    Stainless steel European swivel with jaw and jaw is made by high polished stainless steeel with advanced international production process. It has the advantages of small volume, light weight and high strength.So it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

    Product details:

    • 1. Item:Stainless steel European type swivel jaw and jaw
    • 2. Type: European type
    • 3. Material: stainless steel, carbon steel
    • 4. Technology: drop forged
    • 5. Surface: hot dip galvanized, zinc plated, high polished
    • 6. WLL:300kg-2500kg
    • 7. Breaking load: 4 times of working load
    • 8. Usage: lifting, rigging
    • 9. Size: 6mm-19mm
    • 10.Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification:

    Size

    A

    B

    L

    WLL

    mm

    mm

    mm

    mm

    kg

    6

    6

    12

    66

    300

    8

    8

    16

    94

    475

    10

    10

    20

    118

    875

    13

    13

    26

    152

    1250

    16

    16

    32

    188

    2125

    19

    19

    38

    229

    2500
