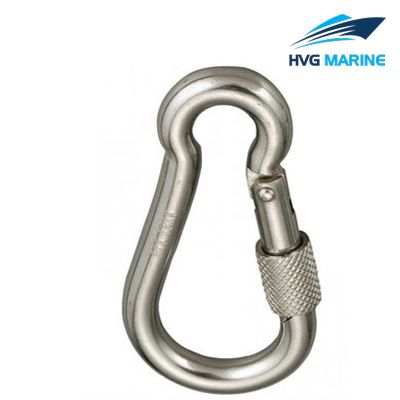

    HVG RIGGING-LIFTING 0306: DIN5299 Stainless Steel Snap Hook With Nut

    DIN 5299 stainless steel snap hook with nut mainly used to link when lifting heavy weights. It is indispensable to lifting equipment. Snap hooks made by 304 stainless steel have good cost performance. They have excellent corrosion resistant and brightness surface. So it could be used in decoration or the place with higher requirements.

    Product details:

    • 1. Item: DIN 5299 snap hook with nut
    • 2. Material: high stainless steel
    • 3. Technology: drop forged
    • 4. Surface:polished, zinc plated
    • 5. Size: 5mm-14mm
    • 6. Usage: lifting industry
    • 7. Breaking load: 4 times of working load
    • 8. Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification：

    Size ΦD

    N.W

    A

    B

    C

    L

    mm

    kg/100pcs

    mm

    mm

    mm

    mm

    5

    2

    25

    8

    7

    50

    6

    3

    30

    9

    8

    60

    7

    5

    35

    10

    8

    70

    8

    7.5

    40

    12

    9

    80

    9

    9.8

    45

    12

    10

    90

    10

    16

    50

    16

    11

    100

    11

    21

    57

    18

    16

    120

    12

    27

    67

    20

    19

    140

    13

    36

    74

    22

    25

    160

    14

    51

    86

    22

    35

    180
