HVG RIGGING-LIFTING 0307

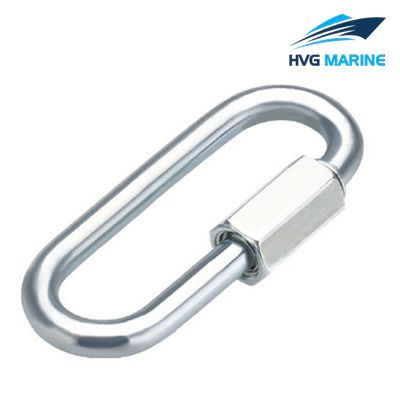

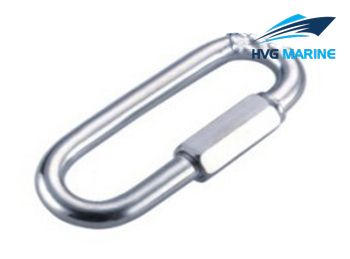

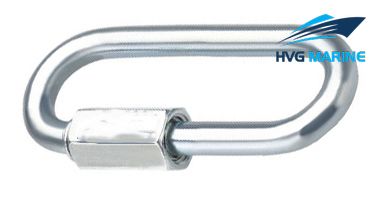

HVG RIGGING-LIFTING 0307: Wide Jaw Quick Link

Wide jaw quick link is made by high polished stainless steel with advanced international production process. It plays an important role in improving the operational efficiency of hoisting equipment and expanding the scope of work of crane. Especially in the process of using stainless steel wire rope, if the length of it is not enough, we can use snap hooks to cannect.

product details:

1. Item: Wide Jaw Quick Link
2. Material: high polished stainless steel
3. Technology: drop forged
4. Surface: polished, zinc plated
5. Size: 3.5mm-12mm
6. WLL:180lbs-2750lbs
7. Usage: lifting industry
8. Breaking load: 4 times of working load
9. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification：

Size ΦD	WLL	N.W	A	B	C	E	L	L1
mm	lbs	g/pc	mm	mm	mm	mm	mm	mm
3.5	180	7	17	10	5	16	45	39.5
4	350	15	19.5	11.5	5.5	19	53	45
5	550	20	23	13	6.5	22	62	52
6	770	37	26.5	14.5	7.5	25	70.5	58.5
7	880	60	30	16	8.5	28	79	65
8	1430	90	33.5	17.5	10.5	31.5	88	72
10	1760	135	40.5	20.5	12	38	105.5	85.5
12	2750	250	47.5	23.5	15	43	124	100
