HVG RIGGING-LIFTING 0279

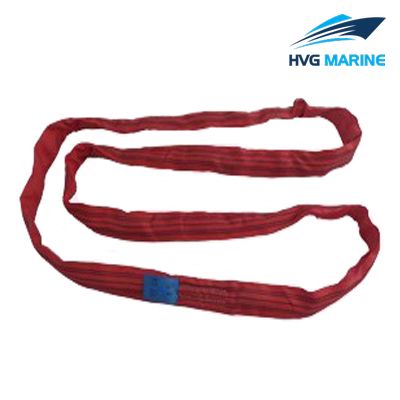

HVG RIGGING-LIFTING 0279: Fireproof Endless Type Round Sling

Fireproof endless type round sling is produced by high-strength, heat resistant aramid fiber. This kind of sling is characterized by light, soft, flame-retardant, heat resistant, excellent abrasion resistance, high strength and low elongation, high safety coefficient, long life, non-conductive, non-electric shock danger, having a good chemical corrosion resistance and so on. In addition, it can be applied to flame, sparks, high-temperature environment and the temperature range is from -40℃ to 180℃. What’s more, its diameter is just half of the ordinary lifting sling. Welcome to get in touch with us.

Details:

1. Model: Fireproof Endless Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification

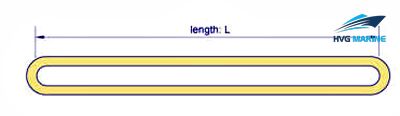

Working load limited	Approx thickness	Approx width	L		Weight(6:1)
Working load limited	Approx thickness	Approx width	Minimum length	Maximum length	Weight(6:1)
kg	mm	mm	m	m	kg/m
1000	4	30	1.50	To be customized	0.28
2000	5	40	1.50		0.42
3000	6	50	1.50		0.50
4000	7	60	1.50		0.56
5000	8	70	1.50		0.60
6000	9	75	2.00		0.70
8000	11	80	2.00		0.80
10000	13	90	2.00		1.50
12000	14	100	3.00		2.24
15000	16	110	3.00		2.66
20000	18	125	3.00		3.64
