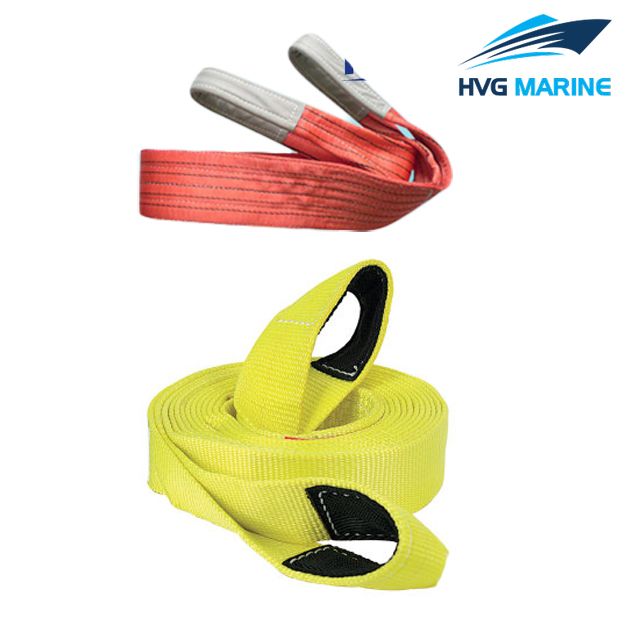

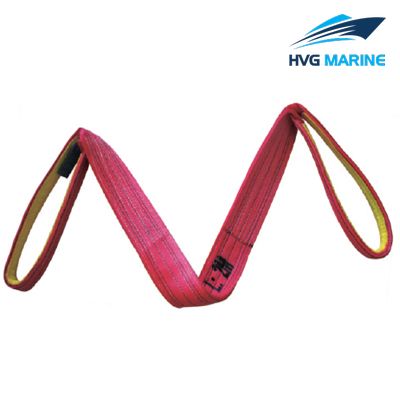

HVG RIGGING-LIFTING 0277: Eye Type Webbing Sling

Webbing sling is compact in structure. Compared with round sling, the contact area with the object of webbing sling is larger. The sling body is thicker and its surface is more flat and more wear resistant. This product has two eyes and it is also widely used in lifting. Our company has produced it for many years and we also co-operate with other excellent factories. All sizes are available and the price is very competitive. If you are interested in our product, welcome to contact with us for detial information.

Details:

1. Model: Eye Type Webbing Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification:

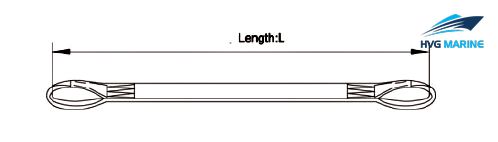

Working load limited	Approx thickness	Approx width			L		Eye length	Weight
Working load limited	Approx thickness	(5:1)	(6:1)	(7:1)	Minimum length	Maximum length	Eye length	(5:1)	(6:1)	(7:1)
kg	kg	mm	mm	mm	m	m	mm	kg/m	kg/m	kg/m
1000	7.5	25	25	30	1.1	To be customized	300	0.19	0.20	0.22
2000	7.5	50	50	60	1.2		300	0.36	0.41	0.45
3000	7.5	75	75	90	1.3		350	0.56	0.60	0.71
4000	7.5	100	100	120	1.4		500	0.61	0.75	1.02
5000	7.5	125	125	150	2.0		550	0.89	1.02	1.21
6000	7.5	150	150	180	2.0		600	0.98	1.26	1.42
8000	7.5	200	200	240	2.0		700	1.36	1.69	1.89
10000	7.5	250	250	300	3.0		800	1.68	2.07	2.34
12000	7.5	300	300	300	3.0		900	1.95	2.37	2.98
