HVG RIGGING-LIFTING 0275

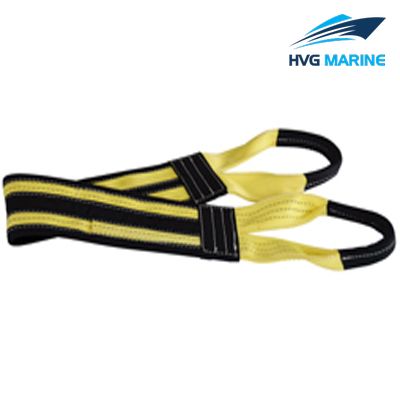

HVG RIGGING-LIFTING 0275: Wide Body Type Webbing Sling:

Wide body type webbing sling is widely used in liftings. Our company has produced this sling for many years and we also co-operate with other excellent factories. Various sizes are available and the price is very competitive. Our professional sales team will provide you with the best service. Welcome to contact with us.

Details:

1. Model: Wide Body Type Webbing Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

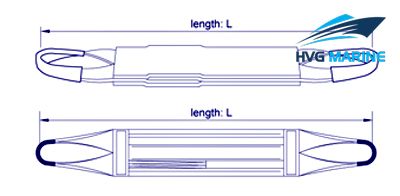

Technical specification:

Specification:

Approx width			L		Eye length	Weight
(5:1)	(6:1)	(7:1)	Minimum length	Maximum length	Eye length	(5:1)	(6:1)	(7:1)
mm	mm	mm	m	m	mm	kg/m	kg/m	kg/m
50	50	60	1.2	To be customized	350	0.24	0.28	0.32
100	100	120	1.3		400	0.48	0.56	0.65
150	150	180	1.4		450	0.68	0.76	0.79
200	200	240	1.8		500	0.86	0.98	1.08
250	250	300	2.0		550	1.08	1.26	1.38
300	300	300	2.3		600	1.46	1.60	1.73
200	200	240	2.3		450	4.63	1.82	1.98
250	250	300	2.3		500	2.06	2.44	2.64
300	300	360	2.4		550	2.32	2.68	2.86
400	400	480	2.5		600	3.32	3.72	4.12
500	500	600	2.6		650	4.65	5.05	5.49
600	600	600	2.8		700	5.15	6.65	6.20
