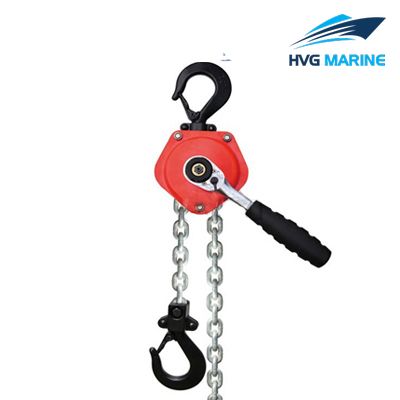

HVG RIGGING-LIFTING 0270: DC Type Manual Lever Chain Block

DC type manual laver chain block is a kind of portable and versatile hand-operated loading and pulling tools. The structure design of whole machine is reasonable, so it has high safety coefficient and long sevice life. Lever hoist is suitable for factories, mines, construction site, wharf, transportation and so on. It has exceptional advantages for pulling in very limited narrow places at any angle.

Producct Details:

1. Minimum capacity: 0.25T: maximum capacity: 5T
2. Standard lifting hight: 1.5m
3. Net weight: 2.2kg-22kg
4. Usage: lifting, fixing, binding, traction and so on.
5. Special specifications and marks can be made according to customers requirement.

Safety Notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.
2. Do not over weight used.
3. Gear and spring should be maintained regularly to prevent brake failure.
4. If there is a phenomenon that it can not pull, please do not pull it with yank power.

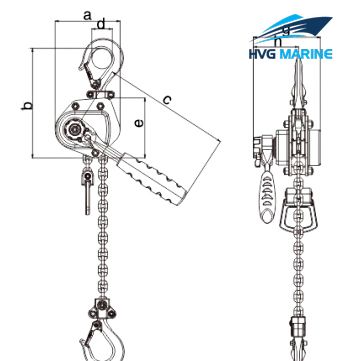

Technical specification:

Specification:

WLL(T)	Size(N)	N.W.(kg)	A(mm)	B(mm)	C(mm)	E(mm)	G(mm)	H(mm)
0.25	4*12	2.2	86	155	170	79	97	77
0.5	4*12	3.2	95	178	170	87	117	80
0.75	5*15	4.7	121	204	240	112	124	84
1.5	7*21	7.6	139	235	240	133	159	90
2.5	9*27	14	173	286	335	162	178	97
5	9*27	22	173	340	335	162	178	97
