HVG RIGGING-LIFTING 0273

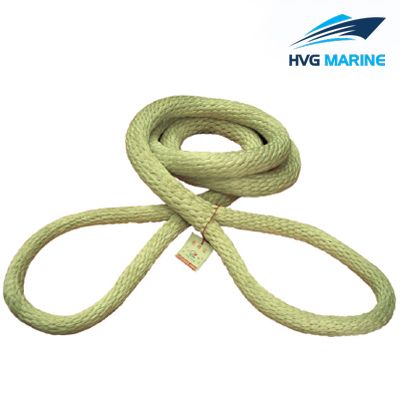

HVG RIGGING-LIFTING 0273: Rope Type Sling:

Rope sling is small and flexible. It can be used for binding and lowing goods. It is applicable for operations in various environments. Our company has lots of experience in producing rope sling. Various sizes are available and the price is competitive. Please feel free to contact with us.

Details:

1. Model: Rope Type Sling
2. Material: polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification:

Diameter	A(PA)	B(PES)	Maximum length
Diameter	Working load limit	Working load limit	Maximum length
mm	kg	kg	m
10	200	120	To be customized
12	250	160
14	300	250
16	450	400
18	680	560
20	900	800
22	1200	1100
24	1400	1280
26	1600	1500
28	1800	1600
30	2000	1800
32	2400	2000
34	2600	2400
36	3000	2600
38	3300	3000
40	3800	3600
42	4200	3900
44	4600	4300
46	5000	4500
48	5300	4800
50	5800	5400
52	6000	5600
54	6300	6000
56	6800	6300
58	7000	6600
60	7300	6800
