HVG RIGGING-LIFTING 0276

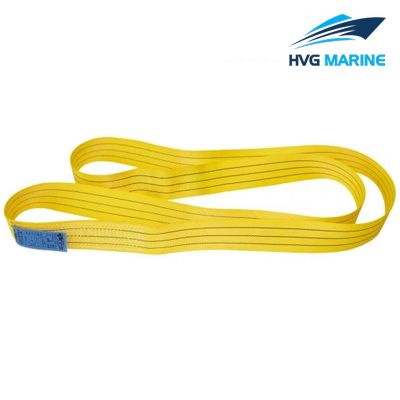

HVG RIGGING-LIFTING 0276: Endless Type Webbing Sling

Endless webbing sling is compact in structure and its contact area with the object is larger. The sling body is thicker and its surface is more flat and more wear resistant. Various sizes are available and the price is very competitive. What’s more, our professional team will provide you with the best service. Welcome to contact with us.

Details:

1. Model: Endless Type Webbing Sling
2. Material: Polyester
3. Usage: Lifting

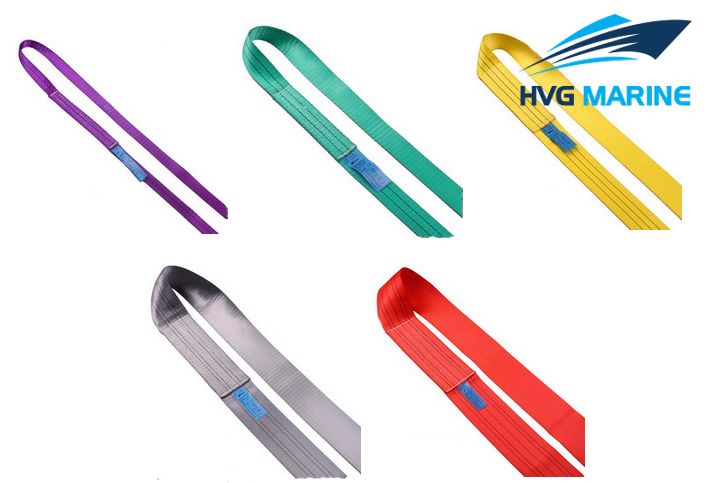

4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification:

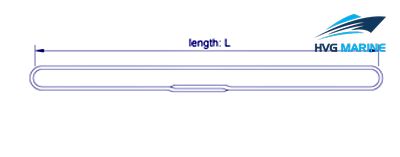

Approx width			L		Weight
(5:1)	(6:1)	(7:1)	Minimum length	Maximum length	(5:1)	(6:1)	(7:1)
mm	mm	mm	m	m	kg/m	kg/m	kg/m
25	25	30	0.5	To be customized	0.16	0.18	0.20
50	50	60	1.0		0.35	0.39	0.60
75	75	90	1.0		0.52	0.73	0.78
100	100	120	1.5		0.80	0.84	0.90
125	125	150	1.5		0.85	0.96	1.14
150	150	180	1.5		0.96	1.12	1.33
200	200	240	2.0		1.34	1.65	1.85
250	250	300	2.0		1.64	1.84	2.05
300	300	300	2.0		1.86	2.06	2.70
